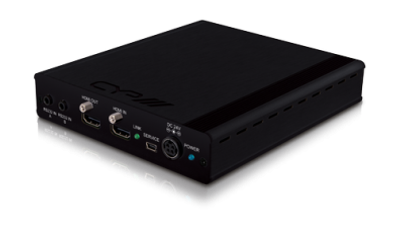

CYP/// 1:2 HDMI till HDBaseT Splitter

7 900 kr



PU-1H2HBTE

PU-1H2HBTE är en HDBaseT splitter för HDMI. Den har 1 HDMI ingång och 2 HDBaseT utgångar plus 1 HDMI bypass utgång. HDBaseT gör det möjligt att skicka okomprimerad HDMI, LAN funktionalitet, Power over Ethernet ( PoE ), IR och RS-232 över en singel Cat5e/6/7 upp till 100 meter. Det finns möjlighet att koppla dessa enheter i en kedja tack vare den extra bypass utgången vilket gör det enkelt för installatörer att splitta signalerna till fler skärmar.

Cyp rekommenderar PU-507RX mottagare för att få full funktionalitet över HDBaseT.


The PU-1H2HBTE splitter accepts 1x HDMI input and distributes to 2 HDBaseT™ outputs, plus 1 HDMI bypass output. The HDBaseT™ outputs allow uncompressed HDMI, LAN, PoE, IR, and RS-232 signals to be transmitted over a Single CAT5e/6/7 cable up to 100m. Installers can confidently distribute HDMI signals to 3 displays, and if required, use the HDMI bypass output to cascade the HDMI signal up to 5 times with additional HDBaseT™ splitters.

PU-507RX Receivers are recommended to utilise the full 5-Play™ functionality of the HDBaseT™ outputs of this device.

Feature:
Supports all v1.4 HDMI resolutions plus 4k.
HDMI, HDCP, & DVI compliant
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4K2K: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
Supports HDCP repeating and CEC functions
Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)
Audio support up to 7.1CH & Dolby TrueHD, DTS-HD
Supports full 5-Play™ Convergence : HDMI / LAN / PoE (Power over Ethernet) / IR / RS-232
Supports 3D signals

Specifications:
Inputs:

1x HDMI [1x HDMI Uncompressed AV and Data]
2x 3.5mm Stereo mini-jack [2x RS-232]
2x 3.5mm Stereo mini-jack [2x Infra Red Receiver]

Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
2x RJ45 [2x HDMI & Propriety Data]
2x 3.5mm Stereo mini-jack [2x Infra Red Emitter]
1x RJ45 [1x Ethernet (I/O) IP]

PSU: 24V/2.7A
Dimensions: 145mm [W] x 160mm [D] x 30mm [H]
Net Weight: 530g
Gross Weight: 700g
