CYP/// Full HDBaseT Mottagare med Scaler, 4K, PoH, LAN

9 000 kr



PUV-1550SRX

Med PUV-1550SRX som är en kombinerad HDBaseT mottagare och 4K scaler kan man skicka video ( upp till och med 4K UHD), tillsammans med HD-ljud, LAN, IR båda hållen, RS-232 samt Power over HDBaseT(PoH) upp till 100 meter.


??The PUV-1550SRX Receiver supports video resolutions up to 4K UHD along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), LAN and Optical Audio Return (OAR) over a single Cat5e/6/7 cable up to 100m. While the HDBaseT input is limited to a maximum of [email protected] (4:2:0), this unit can automatically convert or scale the input to display [email protected] (4:4:4) at the receiving end depending on the detected capability of the connected display panel. Conversely the user can downscale 4K UHD content to 1080p for simple integration of older displays. A useful troubleshooting feature of PUV-1550SRX is a 6G UHD HDMI Pattern Generator for testing locally connected displays. In addition to the full 5Play™ convergence, digital OAR (Optical Audio Return) provides users the ability to transmit Optical Audio (48kHz) to the HDBaseT TX. The RX also features a analogue audio output providing users with total audio flexibility. The PUV-1550SRX also has on board EDID Management which is useful when troubleshooting connected displays.

Features:


HDBaseT 5Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-directional IR/RS-232 pass-through)
[email protected] (YUV 4:2:0) signals can be transmitted up to 100m via Cat.6a/7 cable and up to 70m via Cat.5e/6 cable
HDCP 2.2, HDMI 2.0 and DVI compatible
Bypasses signal on both HDMI outputs or output B can upscale 1080p signals to 4K and output A can downscale a 4K signal to 1080p (same framerate is maintained)
Supports automatic [email protected] YUV 4:2:0 to RGB/YUV 4:4:4 conversion for HDMI outputs
Support signal bypass on HDMI output
Supports data rates up to 18Gbps (6G) and Deep Color up to 48-bit
Supports 4K resolutions including: 3840×[email protected]/25/30Hz, 4096×[email protected]/25/30Hz, 3840×[email protected]/60Hz (4:4:4) & 4096×[email protected]/60Hz (4:4:4)
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Supports OAR (Optical Audio Return) and DAC (Digital to Analog Conversion) audio balance conversion
Support optical sampling rates up to 48kHz
Internal 4K UHD Test Pattern Generator for on-site local display testing
Integrated EDID management
OSD with instant I/O resolution display

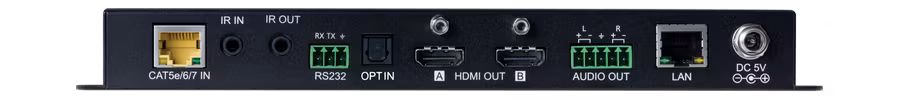

Specifications:


Input:1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x RS-232]
1x Toslink [1x OAR - Optical Audio Return 2 Channel LPCM]
Output:2x HDMI [2x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x Phoenix (5 pin) [1x Analogue Audio Analogue Stereo (Balanced or Unbalanced)]
1x RJ45 [1x LAN Serving]


PoE PSU:PoH
PSU:5V/2.6A
Dimensions:117mm [W] x 231mm [D] x 25mm [H]
Net. Weight:610g
Gross Weight:1066g
