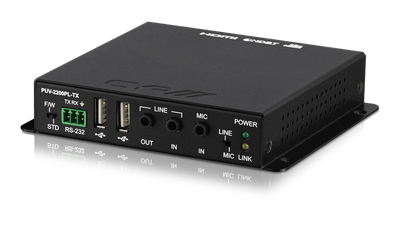

PUV-2200PL-TX
Här har vi en HDMI och USB över HDBaseT 2.0 Sändare med stöd för 4K UHD, HDCP 2.2, HDMI 2.0, analogt ljud upp till 35 meter.
Enheten kan styras på olika sätt, t.ex med hjälp av IR, över RS-232 eller över USB.
Den här marknadsförs som en enhet med fördelarna av HDBaseT 2.0 men över en kortare längd.

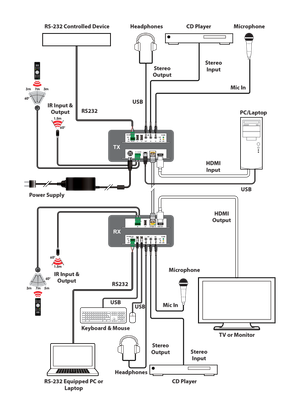

The PUV-2200PL-TX HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/video, along with HD audio and USB, over a single run of CAT5e/6/7 cable at a distance up to 35 meters. This transmitter also features analogue audio input/output and mic input for flexible audio options.
Multi-control interfaces are available which includes IR, RS-232 and USB connection. This extender complies with advanced protocols of HDCP2.2 and HDMI 2.0, as well as supporting the legacy HDCP 1.x standards.
All the benefits of HDBaseT 2 but in a lite version, more cost effective at a shorter CAT cable distance.
Features:
- HDBaseT 2.0 compatible
- Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit)
- Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI
- HDMI 2.0 and DVI 1.0 compatible
- HDCP 2.2 and HDCP 1.x compliant
- Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m
- Supports 16-bit Deep Color up to 1080p@60Hz
- Supports standard 48V from Transmitter (PSE) to Receiver (PD)
Specifications:

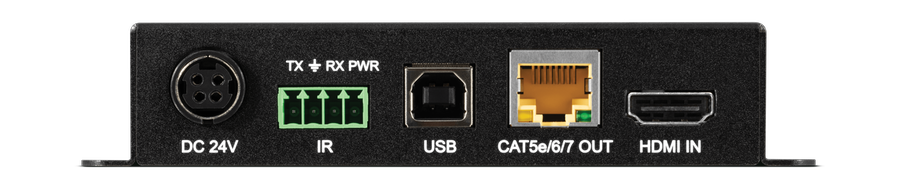

| Inputs | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x USB 3 Type B [1x USB Power & Data] 1x Phoenix (4 pin) [1x Shared IR I/O] 1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)] 1x 3.5mm Stereo mini-jack [1x Microphone] |

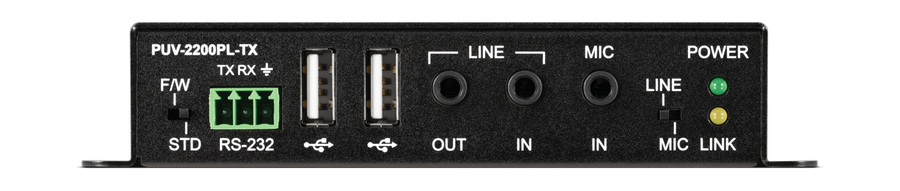

| Outputs | 1x RJ45 [1x HDBaseT HDMI & Propriety Data] 1x Phoenix (3 pin) [1x RS-232] 2x USB Type A [2x USB Propriety Data] 1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)] |
| PSU: | 24V/2.7A |
| Dimensions | 128mm [W] x 108mm [D] x 25mm [H] |
| Net Weight | 380g |
| Gross Weight | 570g |
