CYP/// DVI mottagare över HDBaseT, 100m, PoC, LAN, Analogt Ljud

5 325 kr



PU-DVI1109RX

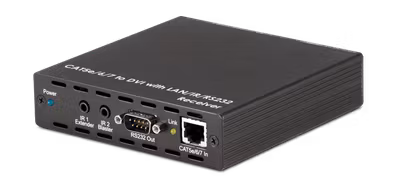

PU-DVI1109RX tar emot DVI och Analogt ljud över en Cat6 kabel med hjälp av HDBaseT teknik.


Den har även möjlighet att ta emot RS-232, IR, LAN ( 2x RJ45 utgångar ) över samma kabel och strömförsörjs genom PoC.


This HDBaseT DVI over CAT5e/6/7 receiver can receive DVI video, analog audio, 2 LAN serving connections, control (RS-232 and bi-directional IR) and Power over Cable(PoC) over a single CAT5e/6/7 cable up to 100m. The PU-DVI1109TX transmitter can power the receiver, via the PoC function, eliminating the need for a separate power supply.

Features:


Supports 3D formats and 4K2K resolution with HDMI to DVI adaptor
Simultaneous transmission of uncompressed video and audio (1080p@60Hz/Deep Color) over a single CAT5e/6/7 cable up to 100m
Supports High-definition Audio formats (up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio)
Connect and share up to 4 LAN connections (2 at the receiver end, 2 at the Transmitter end) at speeds up to 100Mbps
Supports bi-directional IR control and RS-232 pass-through
Full 5Play™ convergence: Video, Audio, LAN serving, Power over Cable (PoC) and Control (IR & RS-232 bypass)
Single power supply powers both units, Receiver unit is powered through the Transmitter via PoC

Specification:


Input:
1x RJ45[1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Output:
1x DVI-I [1x DVI-D]
2x RCA [1x Stereo (L/R)]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
2x RJ45 [2x LAN Serving]


Dimensions:
450mm [W] x 410mm [D] x 90mm [H]
Net. Weight:
380g
Gross Weight:
560g
