CYP/// HDMI - HDBaseT Lite splitter, 1:4+1, AVLC, Audio De-embedd

21 000 kr



PUV-1H4HPL-AVLC

PUV-1H4HPL-AVLC är en HDMI till HDBaseT splitter med 1 HDMI ingång, 4 HDBaseT utgångar + 1 lokal HDMI utgång samt PoH till mottagarna.

Den här enheten gör det möjligt att skicka en 4K UHD källa upp till 40 meter genom att skala bort onödig information av materialet med hjälp av CYP///s Adaptive Visually Lossless Compression (AVLC) teknik.
Kan och vill man begränsa upplösningen till 1080p kan man komma upp till 70 meter med samma enhet.

Trots begränsningen av tillgänglig bandbredd genom HDBaseT tekniken så är det fullt möjligt att skicka 4K@60Hz (4:4:4, 8-bit) såväl som 10/12 bit källor (HDR10 & Dolby Vision) över en Cat5e/6/6 kabel med hjälp av AVLC.

PUV-1H4HPL-AVLC kan självklart hantera ljudet över HDBaseT också, 8 kanals LPCM digitalt ljud samt avancerad Bitstream och HD Bitstream är inga problem. Enheten har också ett analogt-stereo block för ökad flexibilitet vid installation och/ eller kommersiella applikationer.

Styrning av enheten kan skötas ifrån fronten med en OSD eller över RS-232.

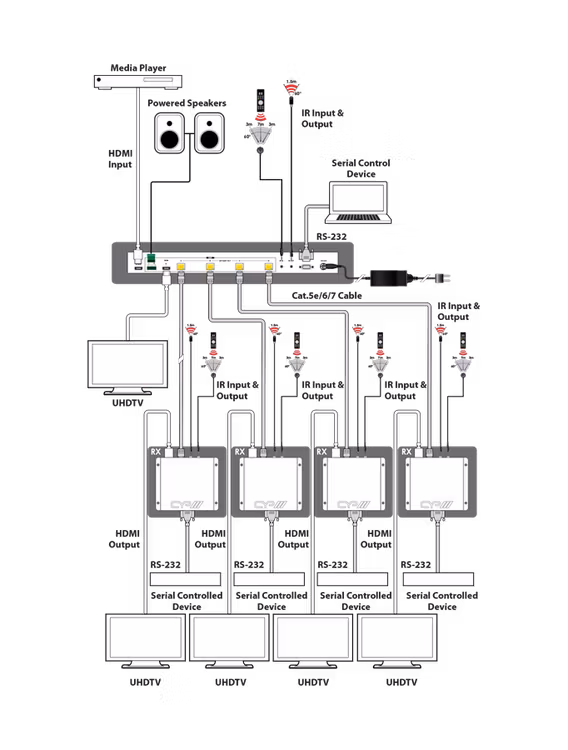

The PUV-1H4HPL-AVLC is a single HDMI Input to 4 x HDBaseT™ Output Distribution Amplifier (Splitter). An advanced solution for splitting and distributing a single HDMI input (up to 4K@60Hz, HDMI 2.0 & HDCP 2.2) to 4 HDBaseT outputs as well as a single local HDMI output with analogue stereo audio de-embedding.

The unit allows the user to distribute a 4KUHD source to any four of the HDBaseT Receivers via a single Cat.5e/6/7 cable (up to 70m at 1080p or up to 40m at 4K). Despite HDBaseT’s 10.2Gbps bandwidth limitation, 4K UHD sources, up to and including 4K@60Hz (4:4:4, 8-bit) as well as 10/12-bit sources (HDR10 & Dolby Vision), are able to be transmitted using our latest AVLC (Adaptive Visually Lossless Compression) Technology when connected to a compatible AVLC Receiver.

The PUV-1H4HPL-AVLC provides solid audio support, including passing 8 channel LPCM digital audio as well as advanced Bitstream and HD Bitstream audio formats via HDBaseT and HDMI. Additionally, an analogue stereo audio breakout output is available for added installation flexibility, particularly in commercial applications.

Standard EDID management is included with PoH (Power over HDBaseT) providing power to compatible receivers. Control is via front panel controls with an OSD and RS-232.

Features:

  • HDMI 2.0 and HDBaseT 1.0 compatible
  • HDCP 1.x and HDCP 2.2 compliant
  • 1 × HDMI Input
  • 4 × HDBaseT and 1 × HDMI outputs
  • Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output Note: Support of resolutions requiring bandwidth above 10.2Gbps via HDBaseT requires a compatible AVLC receiver.
  • Supports Deep Color input and output up to 12-bit
  • Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output
  • HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable up to 40m at 4K when using Cat.6a/7
  • HDBaseT feature support: HD Video and Audio, PoH and Control (bi-directional RS-232 and IR pass-through)
  • Integrated AVLC (Adaptive Visually Lossless Compression) activates when the bandwidth requirements of the source are beyond 10.2Gbps allowing for support of sources up to 18Gbps with no loss of visual quality
  • Supports automatic 4K@60Hz RGB/YUV 4:4:4 to YUV 4:2:0 conversion or downscaling to 1080p for compatibility with non-AVLC HDBaseT receivers based on the detected EDID on each output
  • Supports pass-through of all standard digital audio formats: 8 channel LPCM, Bitstream, and HD Bitstream
  • High-quality DAC (Digital to Analogue audio Conversion) with local analog stereo audio breakout (LPCM 2.0 sources only)
  • EDID Management

Specifications:

Input:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x USB 3 Type B [1x Service Port Power & Data]

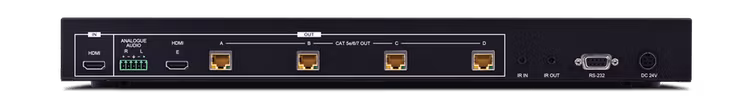

Output:
1x HDMI [1x HDMI Uncompressed AV and Data]
4x RJ45 [4x HDBaseT AVLC HDMI & Propriety Data]
1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]


PSU:
24V/3.75A
Dimensions:

432mm [W] x 174mm [D] x 44mm [H]
Net. Weight:

2155g
Gross Weight:
3520g
