Muxlab Videovägg över IP, stödjer PoE, Mottagare

5 600 kr



500754-RX

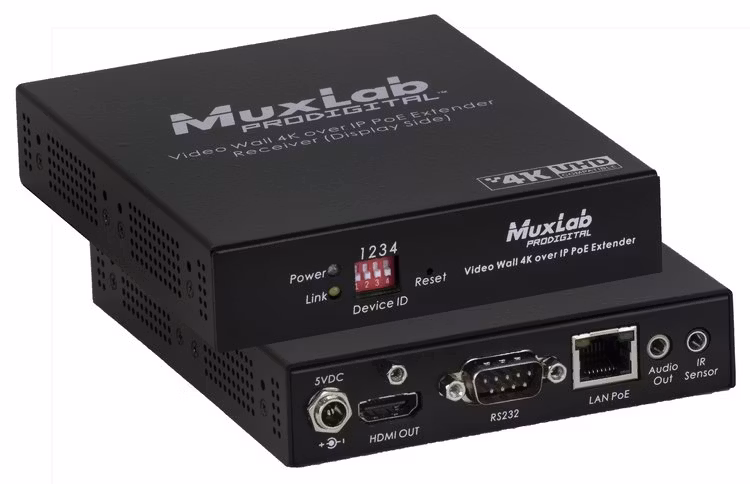

Muxlab 500754-RX är en mottagare för att ta emot en HDMI signal till en array av monitorer i form av en videovägg.

500754-RX är designad att användas tillsammans med en PoE switch och har ingen separat strömadapter.
Har man inte någon PoE switch måste man köpa till en 500992 strömförsörjare till varje mottagare.

För att konfigurera en array av skärmar krävs en 500811 Pro Digital Network Controller.

The Video Wall over IP Extender Kit with PoE allows HDMI equipment to be connected to create a Video Wall of a user configurable size (X by Y) supporting 100’s of screens, depending on network bandwidth, utilizing one receiver for each display in the array.

The transmitter unit is connected using a LAN switch (PoE or non-PoE), with maximum distances of 330ft (100m) of Cat5e/6 cable between equipment.

Set-up and configuration of the video wall function is carried out using the MuxLab ProDigital Network Controller (500811) – sold separately.

Features


Configure a Video Wall array with 100's of displays, depending on network bandwidth
HDMI 1.3
Supports up to 1080p resolutions
Visually lossless video (1 frame latency)
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Transmission up to 330ft (100m) over Cat5e/6
Transmission up to 390ft (120m) between one (1) TX and one (1) RX when no LAN switch is used in a point-to-point scenario
Supports RS232 and IR transmission for remote control
PoE powered
Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
Receivers also sold individually (500754-RX)
