Muxlab Audio / AMP över IP med mic & 50W/kanal

18 500 kr



500755-AMP

Muxlab 500755-AMP är ett kit för att skicka ljud över ett nätverk.


Sändare stödjer strömförsörjning genom PoE vilket betyder att den inte behöver strömförsörjas separat på plats om den är kopplad till en PoE kapabel ethernet switch.


Sändaren tar 2 kanals ljud samt en Mic signal( 3,5 mm ) och levererar det till en eller flera mottagare på samma nätverk.

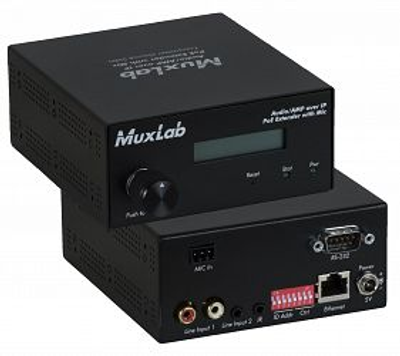

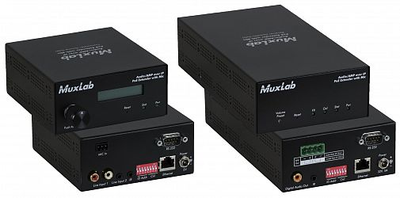

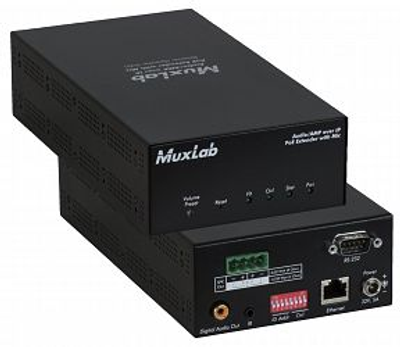

The Audio / AMP over IP Extender Kit, with Mic & AMP 50W/CH consists of a Transmitter (500755-AMP-TX) and a Receiver (500755-AMP-RX), sold as a Kit or separately, allowing a one of two 2CH analog audio-in and Mic-in signals to be extended over an IP network, and up to 330ft (100m) from an Ethernet Switch via Cat5e/6 cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is supported by connecting several Transmitters and Receivers to the same local Ethernet network. Depending on the application one or more Transmitters (500755-AMP-TX) can communicate with (or multicast to) multiple Receivers (500755-AMP-RX).The Transmitter supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Supports bidirectional RS232 and directional IR transmission initiated via an IP network or via pass-through for remote control of end devices.


Features


Supports dual 2CH audio inputs and a Mic input (TX)
Extend 2CH Audio or Mic signals up to 330ft (100m) over Cat5e/6 cable
Supports a 2x50W Amplifier, and bridge-mode for 1x100W (RX)
Supports Digital Audio Out (RX)
Control input selection, volume, bass and treble (TX)
Manage TX locally via push/turn dial or remotely via 500811 Pro Digital Network Controller web interface
Compatible with 500755-70V for 70V speaker systems
Supports point-to-point, point-to-multipoint and multipoint-to-multipoint applications
Supports 100’s of Transceivers depending on network bandwidth
Supports RS232 and IR transmission for remote control of end devices
Transmitter may be PoE powered
