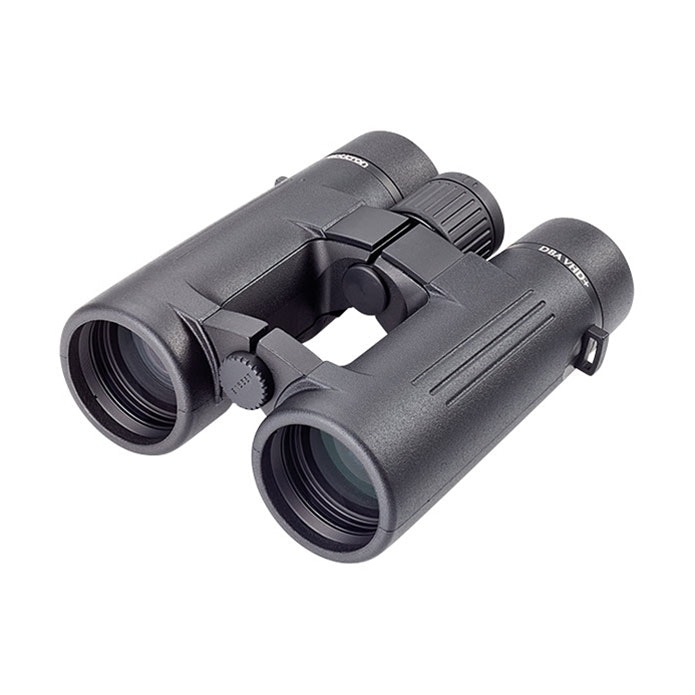

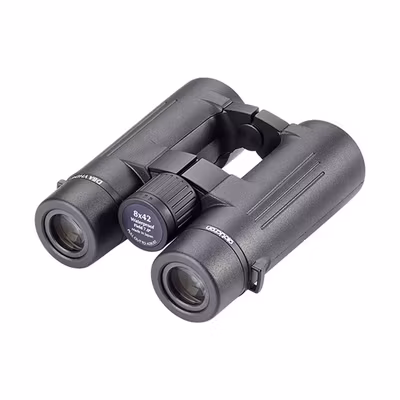

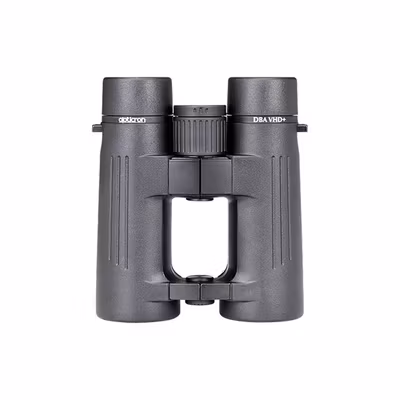

“Smaller, Lighter, Brighter, Sharper”, the new DBA VHD+ takes the company’s design maxim to a new level. Improving on the qualities of the outgoing model, the latest VHD+ version of the DBA is appreciably brighter with better resolution in a similarly compact package. Designed around and built for the professional and enthusiast looking for 8/10x42 quality but preferring the size, weight and feel of a smaller binocular, the DBA VHD+ offers an unrivalled combination of performance, comfort and ergonomics in its class.
Features:
- Compact, lightweight roof prism design
- Dual hinge, single axis body
- Textured rubber armouring
- Nitrogen gas filled waterproof (5m/16ft depth)
- VHD+ optical system incorporating a high quality ED glass objective system, phase corrected prisms with Oasis prism coating
- S-H type multi-coating to all air/glass surfaces
- Flat field vision
- Long eye relief for spectacle wearers
- 4-stage twist type retractable eyecups
- 500º turn smooth action wide wheel focusing
- Close focus to 2.5m/8.2ft
- Central dioptre adjuster
- Tripod adapter socket
Specifications:
| Colour | Black |
| Size | 8x42 |
| Magnification | 8 |
| Lens Dia. (mm) | 42 |
| Field of View (°) | 7 |
| Field of View ([email protected]) | 122 |
| Close Focus (m) | 2,5 |
| Eye Relief (mm) | 22 |
| IPD Range (mm) | 56~74 |
| Waterproof | Yes |
| Prism Type | Roof |
| Length (mm) | 145 |
| Width (mm) | 126 |
| Depth (mm) | 51,5 |
| Dimensions LxWxD (mm) | 145x126x51,5 |
| Weight (g) | 696 |
Technical
| Body Material | Aluminium alloy, Polycarborate |
| Hinge Type | Twin Hinge, Single Axis |
| Armour Type | Full |
| Armour Material | NBR |
| Nitrogen Gas Filled | Yes |
| Eyecup Type | 4 stage twist |
| Dioptre Adjustment side | Right |
| Dioptre Adjuster Location | Centre |
| Dioptre Range | 4.00 |
| Focal Length (mm) | N/A |
| Eyelens Dia (mm) | 22 |
| Prism Material | OP6 |
| Prism Coating | Oasis |
| PC Coating | Yes |
| Lens Coating | S-H Type |
| Serial Number Location | Tripod Adapter socket cap |
| Country of Origin | Japan |
DBA VHD+ binoculars are supplied in a soft Cordura case with rainguard, neoprene bungee strap and rubber objective lens covers
