CYP/// HDMI / DP / VGA Presentations Switch över HDBaseT Sändare 4K m.m

17 600 kr



EL-2600V

The EL-2600V presentation switcher is designed for use in environments needing a wide range of flexibility when it comes to inputs, outputs, and control. The three most common video input interfaces (HDMI, DisplayPort, and VGA w/stereo audio) are included, providing the ultimate in source compatibility and flexibility. The HDMI and DisplayPort inputs support resolution/timing up to a maximum of 4K@60Hz (4:4:4, 8-bit) which is converted, when appropriate and necessary, for transmission over HDBaseT. The selected source (video & audio) can be transmitted over Cat.6/7 cable up to 100 meters (at 4K@60Hz) along with bidirectional Ethernet, RS-232, USB, and IR. Due to the matrixing capability of this unit, an independent source may also be selected for output over the local HDMI output. The EL-2600V also includes a microphone input, with optional 48V/5V phantom power support, feeding directly into a DSP mixer, offering the complete presentation solution.

When paired with the PUV-2600RX (Not Included), up to 3 switchable USB 2.0 host (Type-B) connections are available (2 on the Transmitter, 1 on the Receiver) which connect to up to 6 USB 2.0 (Type-A) device ports (3 on the Transmitter, 3 on the Receiver) for a multi-source, bidirectional, and highly flexible KVM configuration or interactive displays (Note: Only 1 USB host may be active at a time). This Transmitter also provides an interface for a remote control keypad, or trigger interface, which can be easily installed within a lectern or table in a conference room or classroom.

The EL-2600V can be powered locally using a standard power supply, or it can be powered by 48V PoH (Power over HDBaseT) provided by the PUV-2600RX (Not Included), allowing for greater flexibility within different installation scenarios. This unit is controllable via front panel controls, WebGUI, Telnet, Triggers, and RS-232.


Features

  • HDMI and DisplayPort with 18Gbps (600MHz), 3D & 4K video support; HDBaseT 2.0 compatible
  • HDCP 1.x & 2.2 compliant
  • Selectable HDMI, DisplayPort, and VGA inputs
  • HDMI and DisplayPort support input resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • VGA supports input resolutions up to 1080p/WUXGA (RB)
  • HDMI output supports resolutions up to 4K@60Hz (4:4:4, 8-bit)
  • HDBaseT output supports resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) with automatic color space conversion of 4K@60Hz (4:4:4, 8-bit) sources
  • 4×2 matrix switching (HDMI and HDBaseT outputs are independent)
  • Supported HDBaseT features: HD video and audio, 100BaseT Ethernet, 48V PoH, and control (bidirectional IR/RS-232/USB pass-through)
  • Supports pass-through of LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream audio formats
  • Balanced analogue stereo audio breakout
  • Microphone input supports optional 48V/5V phantom power
  • Microphone input feeds into a DSP mixer allowing adjustable mix level controls
  • Flexible USB host selection using front panel buttons
  • Multiple USB hosts may be connected at once (up to 3 total, between the Tx and a compatible Rx unit) with a single selected host active at a time
  • Supports extended keypad (trigger) control for easy, single button, macro activation (optional equipment required)
  • Supports local power, or power via 48V PoH from Receiver (Not Included) to Transmitter (compatible Receivers only)
  • Controllable via front panel buttons, WebGUI, Telnet, Triggers, and RS-232


Specification

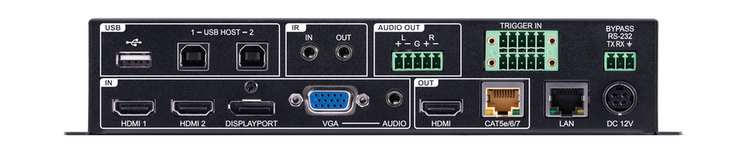

Inputs
2x HDMI [2x HDMI Uncompressed AV and Data]
1x Display Port [1x Display Port Uncompressed AV]
1x 15pin Dsub [1x VGA RGBHV]
2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
1x Phoenix (10 pin) [1x Trigger In (8)]
1x RJ45 [1x LAN Serving]
2x USB Type B [2x Propriety Data]
1x 3.5mm Stereo mini-jack [1x RS-232]
1x Phoenix (3 pin) [1x RS-232]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x 6.35mm Stereo Jack [1x Microphone]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT2 HDMI & Propriety Data]
1x Phoenix (5 pin) [1x Analogue Stereo (Balanced or Unbalanced)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
3x USB Type A [3x Propriety Data]

POE PSU:
PoH
PSU:
24V/3.75A
Dimensions
158mm [W] x 231mm [D] x 44mm [H]
Net Weight
1200g
Gross Weight
1800g
