CYP/// HDMI - SDI

3 700 kr

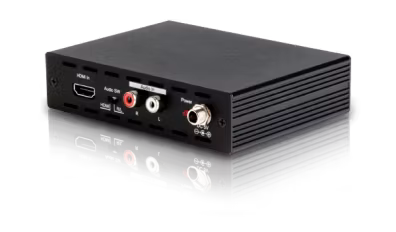

PRO-H2-3GSDI

Denna produkten accepterar icke-HDCP kodad HDMI material och konverterar det till en 3G-SDI signal på 2 utgångar. Detta gör att produkten inte bara gör jobbet som en konverter utan också en splitter.

Med hjälp av det 2 analoga ljud ingångarna kan man skicka en DVI + L/R ljud över en SDI kabel.


The PRO-H2-3GSDI Dual Output Converter accepts non-HDCP protected HDMI content and will convert to dual 3G-SDI outputs simultaneously. This is perfect for extending HDMI signals over long distances (300m for SD signals) to two displays. This device benefits from a 2-channel (L/R) audio input allowing DVI signals with 2-channel audio to be converted to SDI. In addition, the PRO-H2-3GSDI has a built-in EDID management system, with EDID recorder, which ensures the highest level of source and screen compatibility.


Features:

Supports HDMI timing: 480i, 576i, 720p50/60, 1080p 24/25/30, 1080i 50/60, 1080p 50/60

This product does not process HDCP input. When receiving content that has HDCP encryption there will be no video outputted.

Simultaneous display HDMI source on two SDI displays

When a DVI signal goes through HDMI, the L/R audio can be sent with it to the 3G SDI output

Integrated audio embedded up to 8 channel PCM 48kHz for HDMI or 2CH for DVI audio

Choose between a selectable EDID and recordable EDID

Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s

Connect with other units (SDI to HDMI) to extend your signal over long distances

Frequency Bandwidth 225MHz/link (HDMI 1.3)

Auto video mode detection (3G/SD/HD)

Supports signal transmission distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals

Supplied with Locking PSU


Specification:

Inputs 1x HDMI [1x HDMI Uncompressed AV and Data], 2x RCA [1x Analogue Stereo (L/R)]

Outputs 2x BNC [2x SD-SDI / HD-SDI / 3G-SDI]

Power 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified)

Dimensions 125mm (W) x 115mm (D) x 30mm (H)

Gross Weight 660g

Net. Weight 520g
