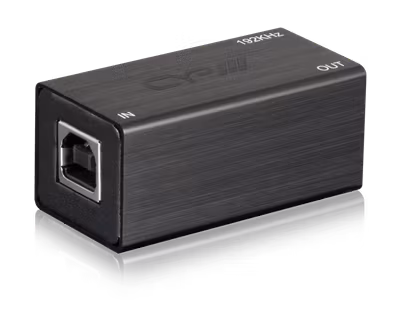

CYP/// USB Digital Audio Converter ( 192 KHz / 24-bit )

1 500 kr



AU-D6-192

AU-D6-192 är en USB till Toslink omvandlare, den kan ta en Audio Class 2.0 ström från en laptop eller desktop dator och lämna ut 2 kanals PCM digital ljud.

Syftet är att använda denna med en extern förstärkare eller aktiva högtalare med optiskt digital ingång.

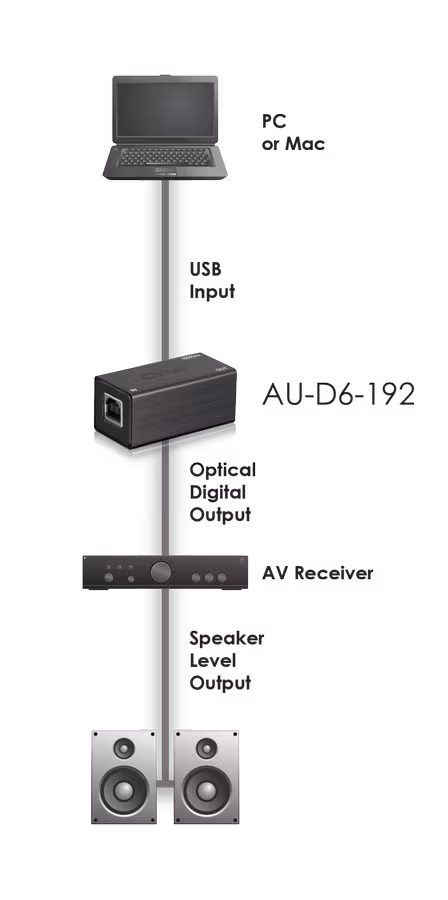

The USB Digital Audio Converter is specially designed to take the audio output from a USB Audio Class 2.0 source such as a Laptop or PC and convert it to high quality 2 channel linear PCM optical digital output (TOSLink) for use with an external amplifier or active speakers with a optical digital input. It utilises a superior USB Audio processor (xMos U8A) with a maximum sampling rate up to 192kHz/24-bit providing an improved frequency response for better audio reproduction. Microsoft Windows and Mac OS X compatible.

Features


Convert USB Audio Class 2.0 from a Laptop/PC to HD audio and output to an amplifier or active speakers.
Superior USB audio processor (XMOS U8A) supports up to 192kHz/24-bits sample rates.
Superior optical module supports up to 192kHz for high resolution digital audio output.
Supports 2-Channel LPCM: 44.1kHz / 48kHz / 88.2kHz / 96kHz / 176.4kHz / 192kHz
Simple operation and compact design for use on-the-go or at home
Compatible with Microsoft Windows XP, Vista, 7, 8, 8.1, 10 (32 & 64-bit) drivers provided
Compatible with Mac OS X version 10.6.4 or better (USB Audio Class 2.0 is natively supported – no driver required)
No external power required

Specifications


Input:1x USB Type B [1x USB (2.0) Audio]

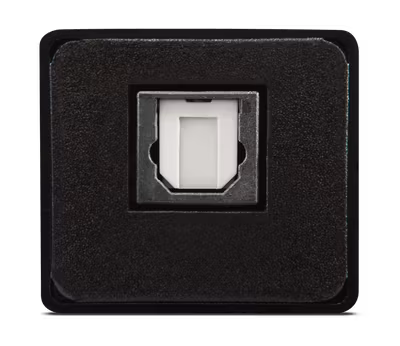

Output:1x Toslink [1x Optical 2 Channel LPCM]
 : :
PSU:USB powered
Dimensions:25mm [W] x 49mm [D] x 22mm [H]
Net. Weight:32g
Gross Weight:69g
