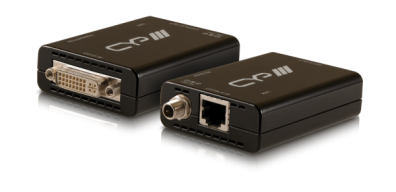

PU-DVI513L-KIT
PU-DVI513L-KIT är en mottagare för att ta emot DVI signaler som sänts över en enkel Cat5e/6/7 kabel. Denna enheten klarar längder upp emot 60 meter.
Mottagaren i detta kit kan strömförsörjas med en USB till 5V kabel med eller utan lås mekanism.
Detta förutsatt att TVn eller enheten med USB kan leverera 5 Volt spänning.
?The PU-DVI513L-KIT allows DVI signals to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m.
Utilise the USB power output from a TV as an optional way of powering the PU-DVI513L-RX receiver unit alternative to a mains power supply.
Features
Complies with the HDBaseT-Lite specifications
Supports HDMI (including HDCP) over a single CAT5e/6 up to 60m (with HDMI to DVI adaptor)
Full HD resolution support (1080p@60 Hz/36-bit) and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
Specification
Inputs:
Transmitter: 1x DVI-I [1x DVI-I]
Receiver: 1x RJ45 [1x DVI & Propriety Data]
Outputs:
Transmitter: 1x RJ45 [1x DVI & Propriety Data]
Receiver: 1x DVI-I [1x DVI-I]
Power:5V/2.6A, DC (US/EU standards, CE/FCC/UL certified) each
Dimensions:54mm [W] x 54mm [D] x 20mm [H] each
Gross Weight:60g each
Net. Weight:72g each
