CYP/// HDMI extender över nätverkskabel med lokal HDMI

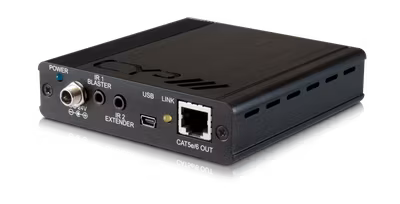

PU-514LTX-1H

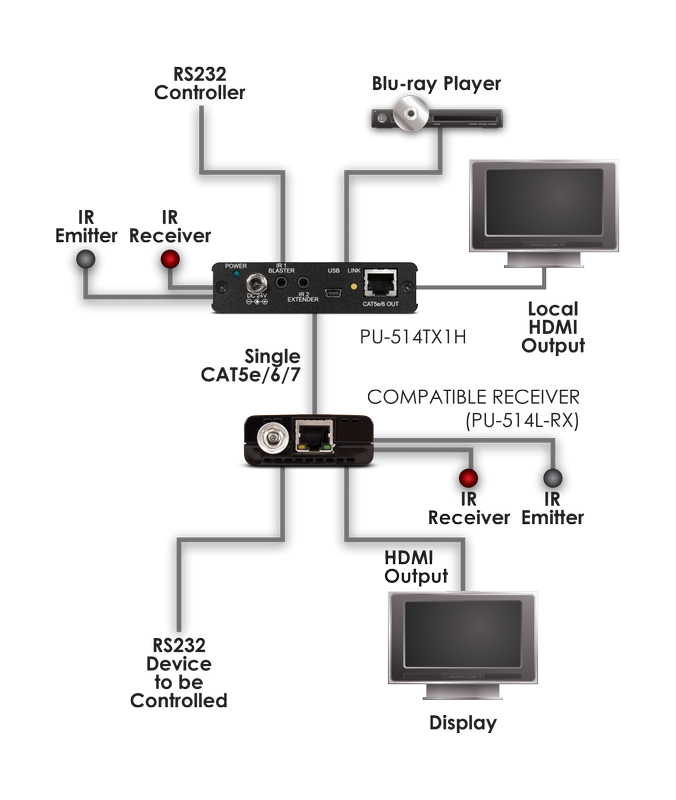

PU-514LTX-1H sändaren gör det möjligt att skicka okomprimerad HDMI och 2 vägs IR över en enkel CAT5e/6/7 upp emot 60 meter.

Just denna versionen, 1H, har även en lokal HDMI utgång för att kunna koppla in en lokal skärm som jobbar simultant med nätverksuttaget.

Det finns möjlighet, beroende på TV modell, att nyttja TVns USB uttag för att strömsätta mottagaren som alternativ till att använda den medföljande ström-adaptern.

???The PU-514LTX-1H Transmitter allows uncompressed HDMI, and 2-way IR signals to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m. This device has the additional benefit of a simultaneous HDMI output for connection to a local HDMI display. Utilise the USB power output from a TV as an optional way of powering a compatible receiver unit alternative to using a mains power supply.

Features:

HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant

Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m

Complies with HDBaseT™- Lite specifications

Full HD resolution support (1080p@60Hz/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable

HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour

Supports HDMI output up to 15m with 8/12-bit deep colour

Supports 2-way IR

Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Choose to power the PU-514L-RX or PU-514L-WPRX receivers via the USB output from a TV (Cable available separately - APC-USB) : * Please note the performance and consistency of USB power outputs from TV's can vary and cannot be guaranteed by CYP.

Specification:
Inputs:

1x HDMI [1x HDMI Uncompressed AV and Data]

1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

1x 3.5mm Stereo mini-jack [1x RS-232]

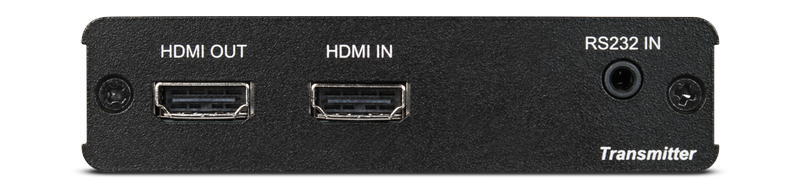

Outputs:

1x HDMI [1x HDMI Uncompressed AV and Data]

1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]

1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU:24V/1.25A

Dimensions: 105mm [W] x 115mm [D] x 26mm [H]

Net Weight: 540g

Gross Weight: 660g

Kompatibla mottagare:
