CYP/// 16:8 HDMI till HDBaseT Matris

Produkten är tyvärr slut i lager. :(

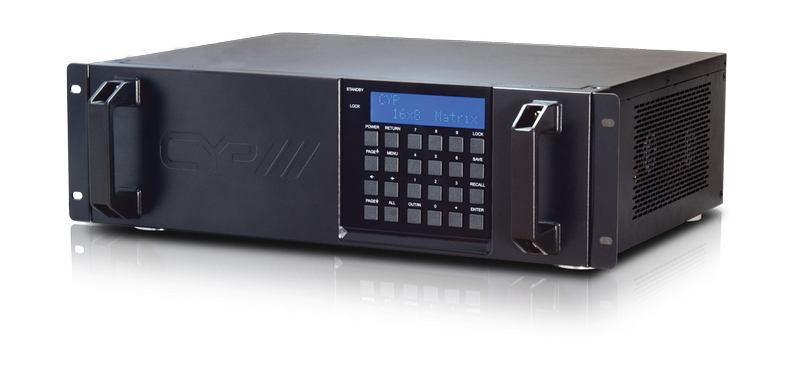

CYP/// PU-16H8HBT är en variant av CYP///'s nya modulära matrixväxlar med 16 HDMI in och 8 HDBaseT ut.

Den modulära basenheten har plats för två ingångskort och två utgångskort. Dessa kort finns med HDMI och VGA som ingångskort, samt HDMI, HDBaseT eller HDBaseT Lite som utgångskort.

Detta ger en oerhört flexibel lösning där man kan konfigurera dem som man vill och behöver.

The PU-16H8HBT modular matrix offers unparalleled levels of flexibility and performance for systems integrators and installers in any multi-zone AV environment. Utilising the latest HDBaseT™ technologies, this device allows switching and distribution of 16 HDMI sources, 2-Way IR, RS-232, and PoE (Power over Ethernet) to lengths of up to 100m using CAT5e/6/7 cable infrastructure.

This modular matrix is pre-configured with 8 HDBaseT outputs designed to be used with any HDBaseT 5-Play Receivers which are powered using the PoE feature of the matrix. The PU-16H8HBT is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for a local monitor allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation. This solution will enable installers to confidently integrate an eight zone multi-room AV system.

In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Control 4. See our download section for Control 4 driver download.


HDMI, HDCP and DVI complaint

Supports uncompressed video/audio up to 10.2Gbps

Common supported resolutions : HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p24: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.

High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)

Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)

Supports RS-232, 2-Way IR, and Manual Selection Buttons

Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit

Supports RS-232 for Matrix Control, plus RS-232 pass-through : Third-party devices can be controlled in each zone via RS-232 from the head-end to the receiver, or head-end devices can be controlled via RS-232 from any receiver in any zone.

Advanced EDID management settings

Onboard Operating Temperature Diagnostics

Recall function allows users to save up to 10 pre-configured Input/Output settings

Supports 3D signals

Supports full IP control via Telnet or web GUI

Integrated IP to RS-232 conversion

Internal command conversion from IP (Telnet) to RS-232


16x HDMI [16x HDMI Uncompressed AV and Data]]

1x 3.5mm Stereo mini-jack [1x IR Propriety Data]

1x 9pin Dsub [1x RS-232 Data]

1x RJ45 [1x IP Control]

1x USB Mini B [1x Service Port Propriety Data]

9x 3.5mm Stereo mini-jack [9x Infra Red Receiver]


8x RJ45 [8x HDBaseT HDMI & Propriety Data]

9x 3.5mm Stereo mini-jack [9x Infra Red Emitter]

1x DVI-I [1x Monitor DVI-D]

Dimensions: 440mm [W] x 360mm [D] x 130mm [H]

Net Weight: 12000g

Gross Weight:13100g
