CYP/// 16x16 VGA to HDMI Matrix

Produkten är tyvärr slut i lager. :(

OR-16V16H

OR-16V16H är en matrisväxel med stöd för upp till 16 VGA källor som kan skicka vidare ljud och bild till 16 HDMI skärmar helt oberoende av varandra. Denna matrisen kan kontrolleras genom IP (se längre ner), RS-232, den medföljande fjärrkontrollen eller med knapparna på fronten av enheten.
Enheten stödjer även "Deep Colour", High Definition Audio och kompatibilitet med 3D signaler.

Matrisen är monterad med 2 "ström försörjare" vilket gör det lätt att inspektera och utföra underhåll utan någon ner-tid. Det finns även en DVI utgång på matrisen för att lätt kunna övervaka, testa och konfigurera ingångar och utgångar under installationen. Denna lösningen kommer underlätta för installatörer att installera en 16 zons lösning.

Utöver detta så har matrisen även ett styr-system över IP som tillåter användare att fjärrstyra matrisen, detta gör det även möjligt att integrera tredjeparts styrsystem så som Control 4.

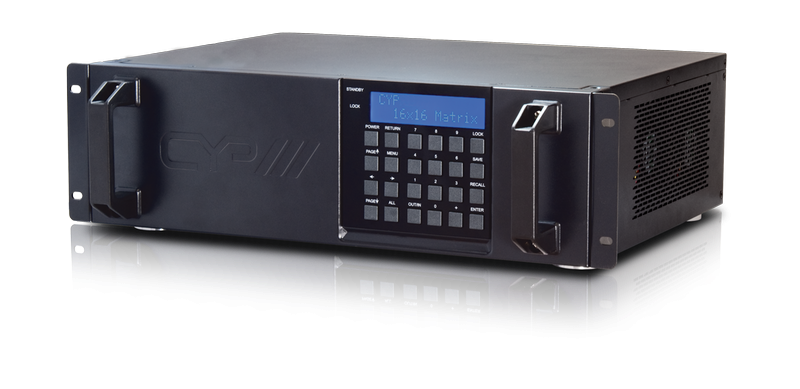

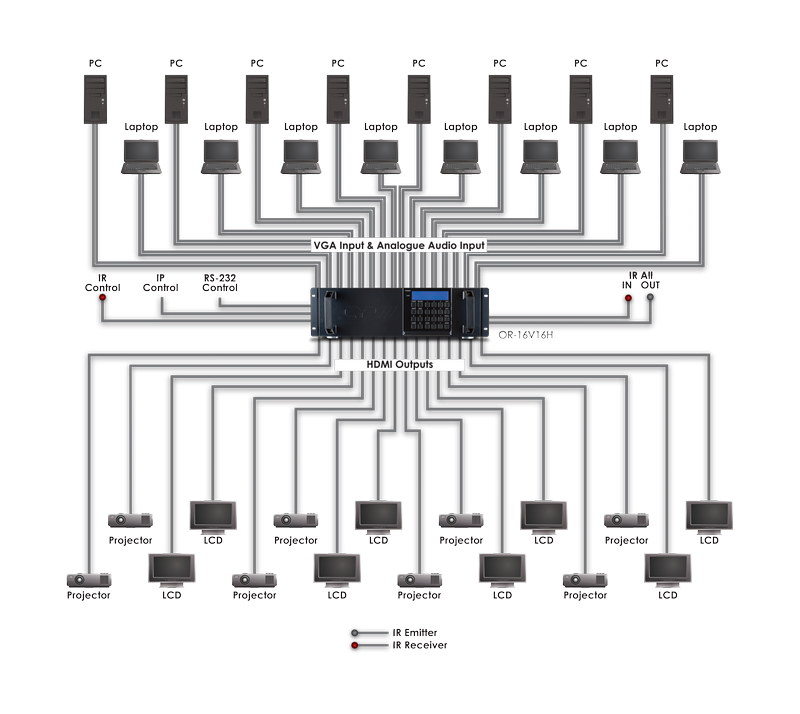

The OR-16V16H Matrix Switcher connects sixteen VGA sources to sixteen HDMI displays allowing any source to be independently displayed on any screen. This matrix switcher can be controlled via the supplied IR Remote Control, IP Control, RS-232, or by using the selection buttons on the front of the unit. This device supports ‘Deep Colour’, High Definition Audio, and 3D signal compatibility.

The OR-16V16H is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for a local monitor allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation. This solution will enable installers to confidently integrate a sixteen zone multi-room AV system.

In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Control 4. See our download section for Control 4 driver download.

Features
HDMI, HDCP 1.1, DVI 1.0 compliant
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080p: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
Analogue Audio Supported via 3.5mm Stereo Jacks

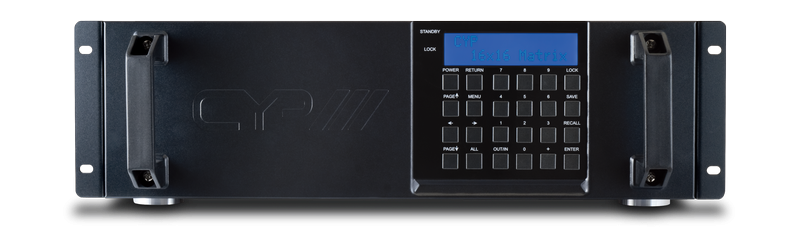

Supports RS-232, 2-Way IR, and Manual Selection Buttons
Advanced EDID management settings
Onboard Operating Temperature Diagnostics
Recall function allows users to save up to 10 pre-configured Input/Output settings
Supports full IP control via Telnet or web GUI
Integrated VGA to HDMI conversion supported (no scaling)

Specifications

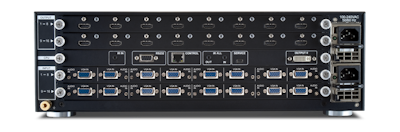

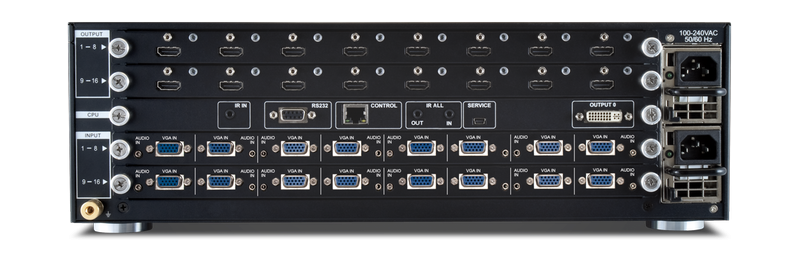

Input:

16x 15pin Dsub [16x VGA RGBHV]
16x 2.5mm Stereo mini-jack [16x Analogue Stereo (L/R)]
1x RJ45 [1x IR Propriety Data]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x USB Mini B [1x Service Port Propriety Data]
1x RJ45 [1x IP Control]

Outputs:
16x HDMI [16x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x DVI-I [1x Monitor DVI-D]

Dimensions: 440mm [W] x 360mm [D] x 130mm [H]
Net Weight: 12000g
Gross Weight: 13100g
