PU-8V16HBT
CYP/// PU-8V16HBT är en variant av CYP///'s nya modulära matrixväxlar med 8 VGA in och 16 HDBaseT ut.
Den modulära basenheten har plats för två ingångskort och två utgångskort. Dessa kort finns med HDMI och VGA som ingångskort, samt HDMI, HDBaseT eller HDBaseT Lite som utgångskort.
??The PU-8V16HBT modular matrix offers unparalleled levels of flexibility and performance for systems integrators and installers in any multi-zone AV environment. Utilising the latest HDBaseT™ technologies, this device allows switching and distribution of 8 VGA sources, 2-Way IR, RS-232, and PoE (Power over Ethernet) to lengths of up to 100m using CAT5e/6/7 cable infrastructure.
This modular matrix is pre-configured with 16 HDBaseT outputs designed to be used with PU-507RX, PU-507WPRX, PU-507RX-2H, or PU-507RX-SCD Receivers which are powered using the PoE feature of the matrix. The PU-8V16HBT is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for a local monitor allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation. This solution will enable installers to confidently integrate a sixteen zone multi-room AV system.
In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Control 4. See our download section for Control 4 driver download.
Feature:
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080p: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
Analogue Audio Supported via 3.5mm Stereo Jacks
Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)
Supports RS-232, 2-Way IR, and Manual Selection Buttons
Supports RS-232 for Matrix Control, plus RS-232 pass-through : Third-party devices can be controlled in each zone via RS-232 from the head-end to the receiver, or head-end devices can be controlled via RS-232 from any receiver in any zone.
Onboard Operating Temperature Diagnostics
Recall function allows users to save up to 10 pre-configured Input/Output settings
Supports full IP control via Telnet or web GUI
Integrated VGA to HDMI conversion supported (no scaling)

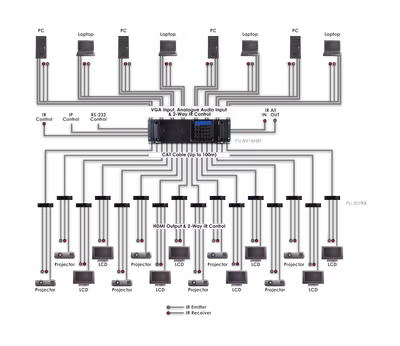

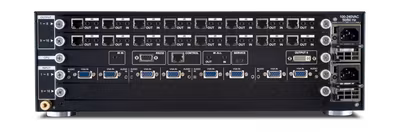

Specification:
Inputs:
8x 15pin Dsub [8x VGA RGBHV]
8x 2.5mm Stereo mini-jack [8x Analogue Stereo (L/R)]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
17x 3.5mm Stereo mini-jack [17x Infra Red Receiver]
1x USB Mini B [1x Service Port Propriety Data]
1x 3.5mm Stereo mini-jack [1x IR Propriety Data]
Outputs:
16x RJ45 [16x HDBaseT HDMI & Propriety Data]
17x 3.5mm Stereo mini-jack [17x Infra Red Emitter]
1x DVI-I [1x Monitor DVI-D]
Dimensions: 440mm [W] x 360mm [D] x 130mm [H]
Net Weight: 12000g
Gross Weight:13100g
