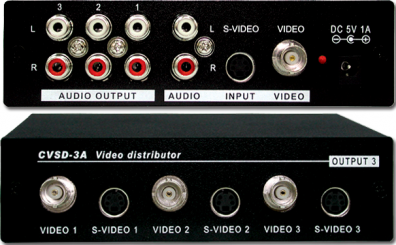

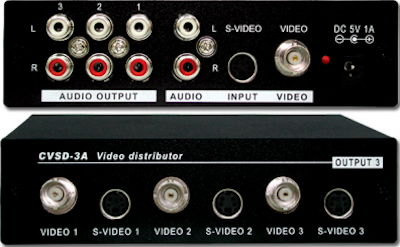

CVSD-3A
En splitter för komposit eller S-VHS samt ljud. Om man är finurlig kan man använda den som en 6-vägs splitter för komposit. Den går också utmärkt att använda som en signalförstärkare / booster vid långa kablar.
A versatile combination unit offering composite video or S-Video plus stereo audio input delivering three buffered and isolated outputs. However, if the composite video and the S-Video are from the same source, the unit then becomes a 1-in, 6-out distributor!
Features
Composite & S-Video compatible.
Separate audio connections.
Can be utilised as a six way amp.
Specification
Inputs1 x CV, 1 x SV, 2 x RCA L/R Audio
Outputs3 x CV, 3 x SV, 3 sets L/R audio
Power5V 2A
Dimensions141(w) x 105(d) x 38(h)mm
Weight420g
