CYP/// HDMI över Singel Cat 5e/6/7 med IR

Produkten är tyvärr slut i lager. :(

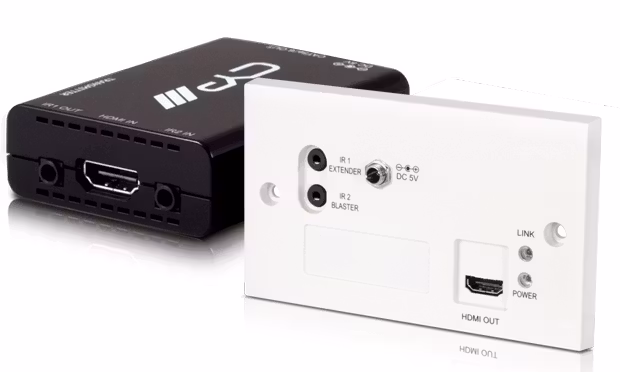

PU-514L-WP-KIT

Nytt kit med Väggmodell på mottagarsidan!

The PU-514-KIT allows uncompressed HDMI and 2-way IR to be transmitted over a Single CAT5e/6/7 cable to distances of up to 60m.

Tvåvägs IR!

Features:
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications
Full HD resolution support ([email protected]/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
Supports HDMI output up to 15m with 8/12-bit deep colour
Supports 2-way IR
Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Specification:
PU-514L-WPRX
Inputs:

1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU: 5V/2.6A
Dimensions: 55mm [W] x 52mm [D] x 22mm [H]
Net Weight: 60g

PU-514L-TX
Inputs:

1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

Outputs:
1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU: 5V/2.6A
Dimensions: 55mm [W] x 83mm [D] x 22mm [H]
Net Weight: 60g

Total Gross Weight (both): 280g
