CYP/// HDMI Repeater and Audio Converter w/ DD/DTS De-Embedder

Produkten är tyvärr slut i lager. :(

AU-1H1DD

HDMI repeater som kan plockar ut en Dolby Digital eller DTS ljud signal ur en HDMI signal och ner-konvertera det till 2 kanals stereo ljud.

Man kan manuellt välja om SPDIF ( koax / toslink(optiskt) ) skall ner-konverteras eller inte, samma sak med HDMI utgången.

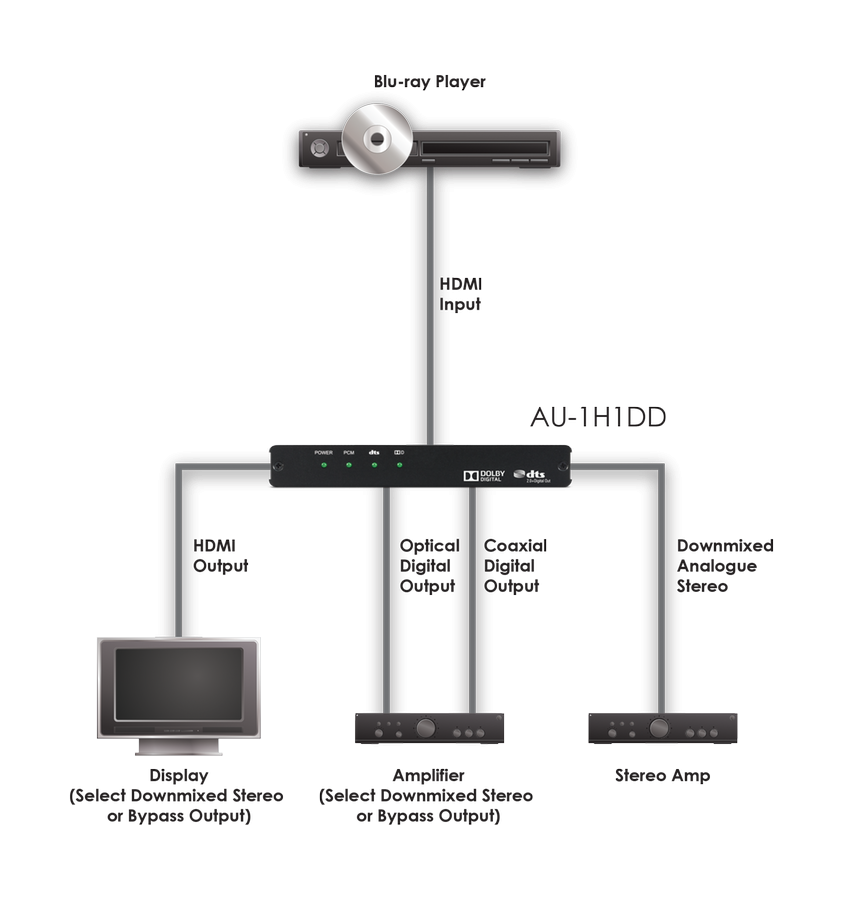

??The AU-1H1DD is an advanced solution for de-embedding and down-mixing an audio signal from the HDMI input (up to Dolby® Digital and DTS® 2.0+Digital Out). Connect the AU-1H1DD between the source and your display via HDMI, and select 2CH LPCM or bypass. The digital audio outputs can also be set to either 2CH LPCM or bypass. The L/R analogue outputs will always output down-mixed stereo (with audio up to Dolby® Digital and DTS® 2.0+Digital Out).

Features

HDCP 1.4 Compliant
Supports resolutions VGA~WUXGA, 480i~1080p, 4K [email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K [email protected] 60Hz (YUV 4:2:0), 4K/[email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/[email protected] 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
Supports simultaneous audio outputs on HDMI, analog R/L, Coaxial and Optical
Choose between HDMI bypass and 2 Channel audio using the HDMI output switch
Choose between SPDIF bypass and 2 Channel audio using the SPDIF output switch
Supports digital coaxial and optical audio sampling rate output up to 96kHz
Support Dolby Digital/DTS sampling rate up to 48kHz
DTS Digital Surround Decoder technology
Dolby Digital Decoder technology

Specification:

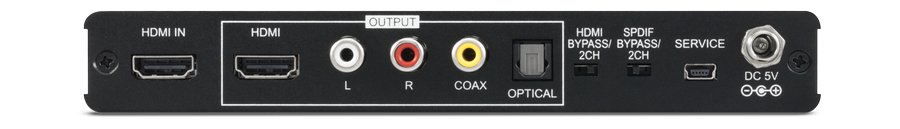

Inputs:
1x HDMI [1x Uncompressed AV and Data]

Outputs:
1x HDMI [1x Uncompressed AV and Data]
2x RCA [1x Stereo (L/R)]
1x Toslink [1x Dolby Digital / DTS / 2 Channel LPCM]
1x RCA [1x Coaxial Dolby Digital / DTS / 2 Channel LPCM]

Power: 5V/2.6A
Dimensions: 180mm [W] x 110mm [D] x 25mm [H]
Gross Weight: 868g
Net. Weight: 368g
