CYP/// PU-8H8HBTLKIT är ett komplett paket som förutom Matrisväxeln PU-8H8HBTL även inkluderar 8 st PU-514LRX mottagare i ett rejält rabatterat pris.

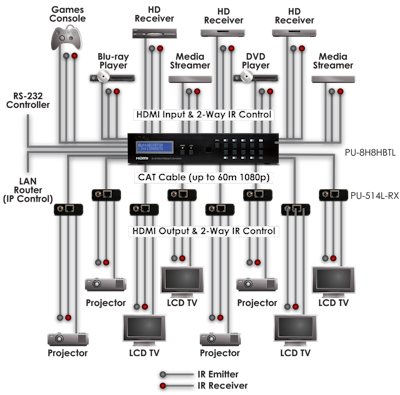

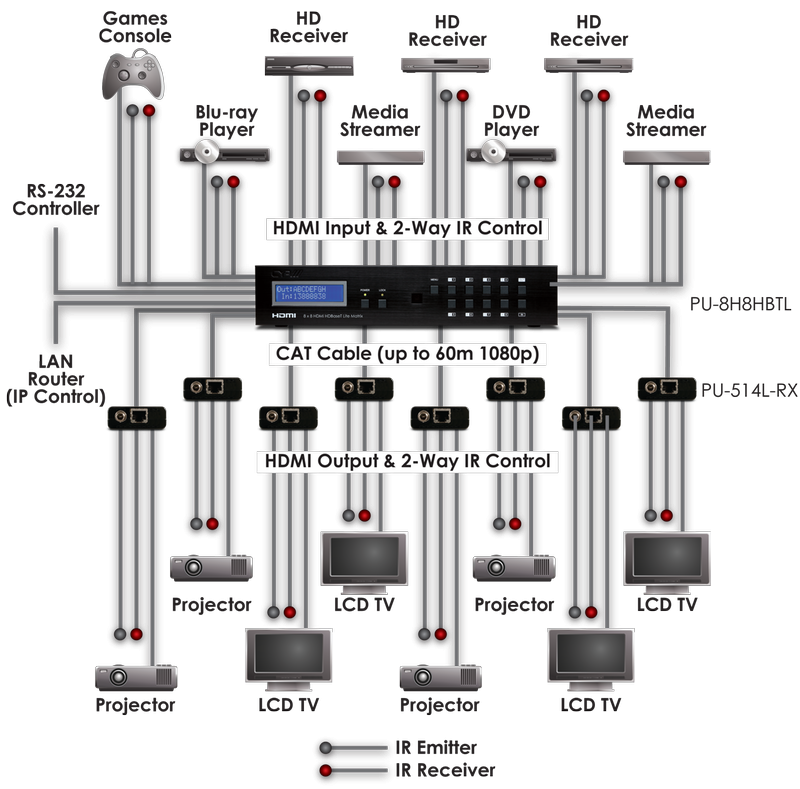

This 8 by 8 HDMI HDBaseT™ Matrix supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS-232 or Web GUI/Telnet IP from four high definition sources to four HDBaseT outputs over a single CAT5e/6/7 cable (up to 100m) for each output. Output A and C have additional mirrored HDMI outputs, for added installation flexibility.
The PU-8H8HBTL-KIT is supplied with 8x PU-514L-RX receivers which utilise the 2-way IR control capabilities of the matrix.
In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems. CYP provide control drivers for control systems such as Control 4, Crestron, AMX, Control FX, and RTI. These are available at no extra cost.
Feature:
Supports all v1.3 HDMI resolutions
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP and DVI complaint
High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
Uncompressed data transfer over single CAT cable (60m - CAT5e/6/7)
Supports third-party control systems, with drivers available for : Control FX, AMX, Crestron, RTI, Control 4
Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.
Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC control pass through
Selectable EDID settings - TV (downstream) and STD (fixed)
Compact 1U Rack mount design
Supports 3D signals
Supports additional IR Control via a master (ALL) Input/Output
Supports full IP control
Supplied with 4x PU-514L-RX receivers
Inputs
4x HDMI [4x HDMI Uncompressed AV and Data]
5x 3.5mm Stereo mini-jack [5x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port - Propriety Data]
Outputs:
4x RJ45 [4x HDBaseT Lite - HDMI & Propriety Data]
2x HDMI [2x HDMI Uncompressed AV and Data]
5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
PSU: 24V/6.25A
Dimensions: 435mm [W] x 265mm [D] x 45mm [H]
Net Weight: 3400g
Gross Weight: 4600g
The PU-8H8HBTL-KIT is supplied with 8x PU-514L-RX receivers which utilise the 2-way IR control capabilities of the matrix.
In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems. CYP provide control drivers for control systems such as Control 4, Crestron, AMX, Control FX, and RTI. These are available at no extra cost.
Feature:
Supports all v1.3 HDMI resolutions
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
HDMI, HDCP and DVI complaint
High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
Uncompressed data transfer over single CAT cable (60m - CAT5e/6/7)
Supports third-party control systems, with drivers available for : Control FX, AMX, Crestron, RTI, Control 4
Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit.
Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC control pass through
Selectable EDID settings - TV (downstream) and STD (fixed)
Compact 1U Rack mount design
Supports 3D signals
Supports additional IR Control via a master (ALL) Input/Output
Supports full IP control
Supplied with 4x PU-514L-RX receivers
Specifications:
Inputs
4x HDMI [4x HDMI Uncompressed AV and Data]
5x 3.5mm Stereo mini-jack [5x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port - Propriety Data]
Outputs:
4x RJ45 [4x HDBaseT Lite - HDMI & Propriety Data]
2x HDMI [2x HDMI Uncompressed AV and Data]
5x 3.5mm Stereo mini-jack [5x Infra Red Emitter]
PSU: 24V/6.25A
Dimensions: 435mm [W] x 265mm [D] x 45mm [H]
Net Weight: 3400g
Gross Weight: 4600g
