CYP/// OR-42UHD 4x2 Ultra High Definition HDMI matris

Produkten är tyvärr slut i lager. :(

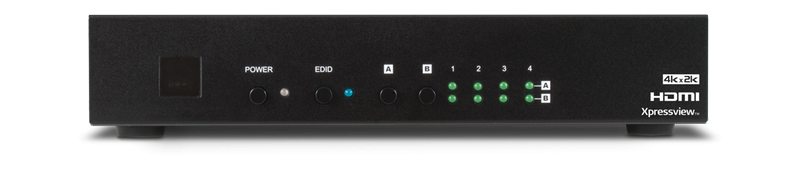

OR-42UHD 4K är en matris växel med 4 st HDMI ingångar och 2 st HDMI utgångar som man kan välja fritt mellan. För att styra matrisen kan man använda den medföljande fjärrkontrollen, RS-232 eller med knapparna på fronten. Integrering med tredjeparts kontroll system är lätt att uppnå med utökad RS-232 support eller via Webb gränssnittet. Just denna matrisen har stöd upp till "Ultra Hög Definition" 4K upplösning, upp till 16-bitars "Deep colour", "Hi-Fi" Ljud och stöd för 3D signaler.


The OR-42UHD 4K Matrix Switcher connects four HDMI sources to two displays allowing any source to be independently displayed on any screen. This matrix switcher can be controlled via the supplied remote control, RS-232, or by using the input switching buttons on the front of the device. Integration with third party control systems is easily achieved with additional RS-232 support or via Web GUI control. This device supports Ultra High Definition 4K resolutions, up to 16-bit 'Deep Colour’, High Definition Audio, and 3D signal compatibility.

Features
HDMI, HDCP 1.1, DVI 1.0 compliant
Ultra High Definition HDMI 4x2 Matrix Switcher
Resolutions supported : HDTV - 480i to 1080p plus 1080p24fps, and 4K2K: PC - VGA to WUXGA:
High Definition audio supported : Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio + 7.1 Channel LPCM
RS-232, CEC Command functionality, IR Remote Control (supplied), Web GUI Control
Xpressview™ - Super Fast Switching Technology

Specifications

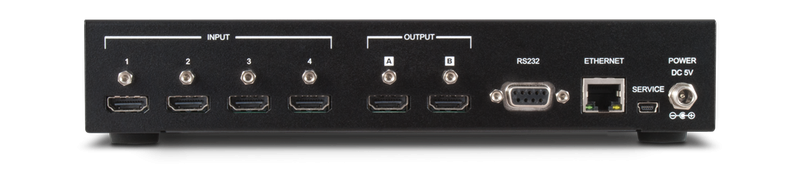

Input
4x HDMI [4x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]

Output 2x HDMI [2x HDMI Uncompressed AV and Data]

PSU: 5V/2.6A
Dimensions 240mm [W] x 105mm [D] x 45mm [H]
Net Weight 780g
Gross Weight 1300g
