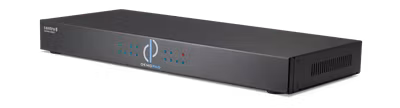

CYP/// DM-CENTRO8 Demopad Centro 8 styrbox

Produkten är tyvärr slut i lager. :(

?The CENTRO8 controller is a powerful automation processor enabling a certified installer to create customised commercial or residential touchscreen control systems. Utilising advanced embedded software, and programmable using Demopad Designer Software, the CENTRO8 processor is the heart of your control system providing complete control over automated and manual control functions. Demopad is the fastest and most cost effective solution for controlling audio, video, lighting, HVAC (Heating, Ventilation, Air Conditioning), and security systems (CCTV) directly from an iPhone, iPad, or Android device. The GUI can be user-branded for that finishing touch to any professional or bespoke control system interface.

The CENTRO8 controller incorporates a vast array of connectivity ports for integration of IR, RS-232, Contact Closures, VF Relays, HDMI, USB, Audio, and LAN. Existing Demopad software projects can be seamlessly integrated with the controller delivering the ultimate in flexibility for professionals committed to delivering World class control solutions.

Features:
Powerful IP Networking Capabilities : Connect up to 20 simultaneous client devices (iOS/Android), and communicate with many more control devices throughout the network
Astronomically-Aware Timer Events : Turn your lights off 25 minutes after sunset, except on weekends & in the summer
Centrally Stored System Variables : When one user turns a zone On, any other user (including remote ones) also know about it
Programmable Audio Output : Play a custom doorbell or security alert sound through your audio system when an input triggers, or at certain times
Programmable HDMI Output : Have another input to your HDMI distribution system to show web pages or a photo frame slideshow
Built-in Web Server : Store the Demopad project on the CENTRO8 and allow communication of any device with a web browser
Advanced Macros : Uses the same powerful macro generation routines as our control app
Upgrade in the field : Return to your clients after installation to enable new features and benefits
HDMI Resolution Support up to [email protected]
Dolby True HD, Dolby Digital Plus and DTS Master Audio Pass-through Supported via HDMI

Specification
Input:

4x 9pin Dsub [4x Addressable RS-232 Data]
8x Captive Screw Connector [4x Low Voltage Contact Closure Relay Outputs]
1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
1x HDMI [1x HDMI Uncompressed AV and Data]
2x USB Type A [2x Propriety Data]
1x RJ45 [1x Ethernet LAN IP]

Output
16x 3.5mm Stereo mini-jack [16x Addressable Infra Red Emitter]
8x Captive Screw Connector [8x Volt Free Digital Inputs]

PSU: 12V/3A
Dimensions: 432mm [W] x 174mm [D] x 44mm [H]
Net Weight 2100g
Gross Weight: 2650g
