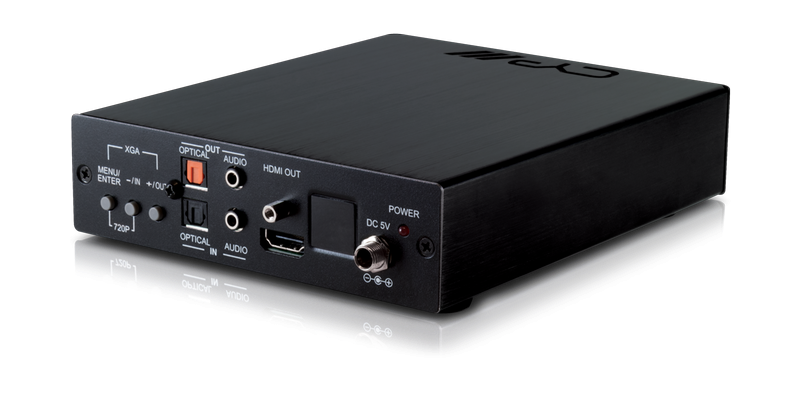

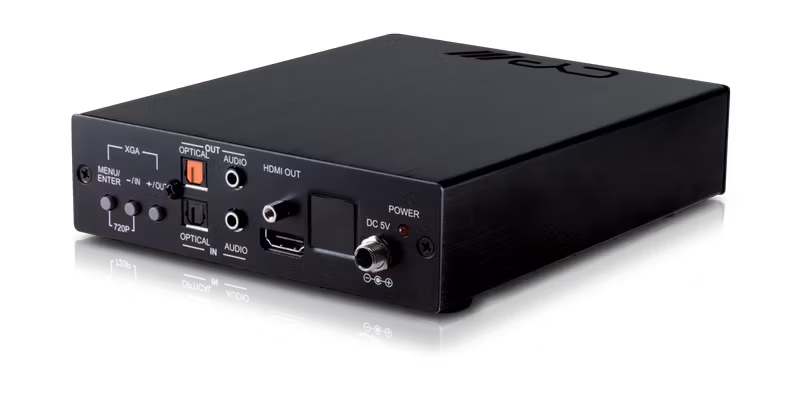

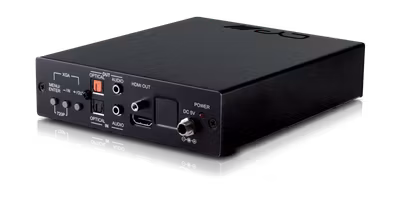

EL-5400D
EL-5400D är en presentations switch med integrerad "scaler" med stöd för att omvandla Dual-Link DVI, Mini Display-Port och PC/Komponent till HDMI.
Man kan med hjälp av den optiska och / eller de analoga stereo ingångarna bädda in eller extrahera ljudet individuellt.
För att styra switchen kan man använda en fjärrkontroll eller genom RS-232 protokollet.

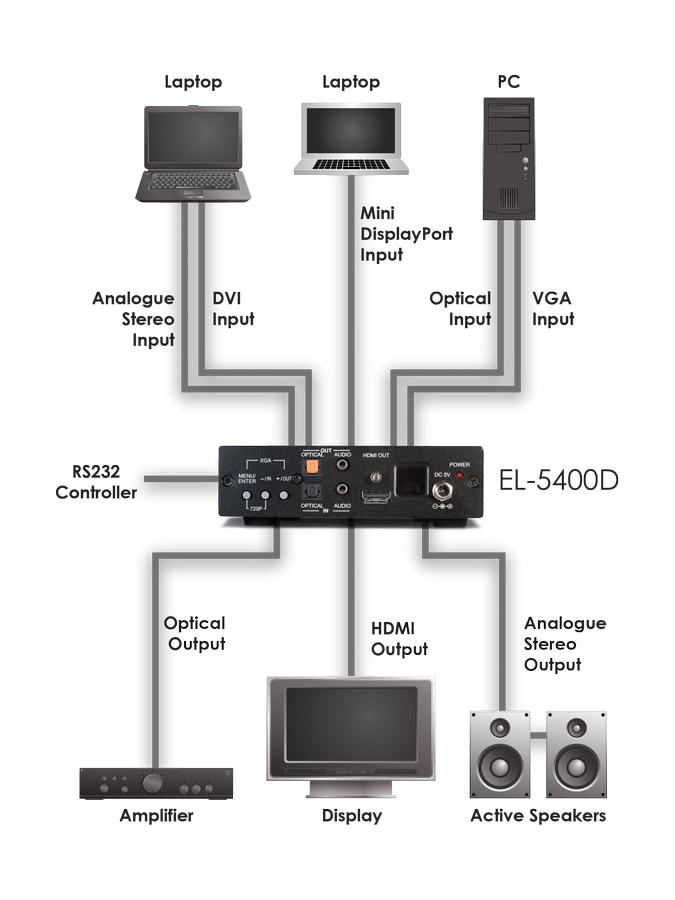

?The EL-5400D Presentation Switch with integral scaler is designed to be used with Dual-link DVI, Mini Display-Port, and PC/Component sources allowing users to switch and scale these sources to it's HDMI output. Digital Optical and Analogue Stereo Audio inputs and outputs can be managed for bi-directional conversion, extraction, and insertion from the individual ports for full audio embedding and de-embedding functionality. Control is via the IR remote, or RS-232 protocol.
Features
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Integrate and switch DVI, VGA, and Mini Display-Port sources to a single HDMI output
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Audio support : Dolby Digital, Dolby DTS, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, LPCM Multi-channel, LPCM Stereo, Analogue Stereo
Resolution Support : Component up to 1080p@60Hz / Dual-Link DVI & Mini Display-Port up to 2560x1600@60Hz (Reduced Blanking) / PC up to 1920x1200@60/75Hz
Supports component input when connected VGA to 3-RCA adaptor (not supplied)
Specification

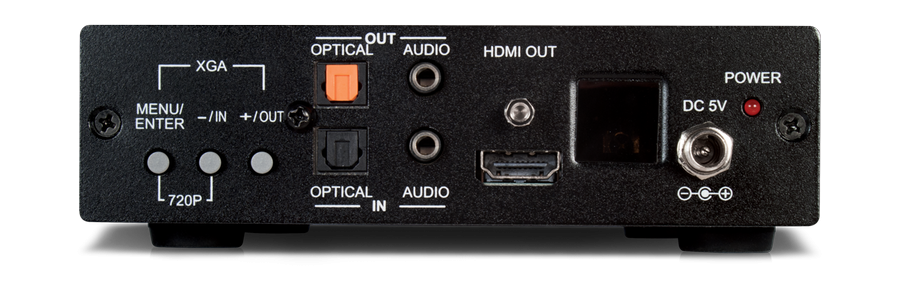

Inputs:
1x DVI-I [1x DVI-D]
1x Display Port [1x Mini Display Port Uncompressed AV]
1x 15pin Dsub [1x RGBHV / YPbPr Component]
1x Toslink [1x Optical Dolby Digital / DTS / 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x 9pin Dsub [1x RS-232 Data]
Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Toslink [1x Optical Dolby Digital / DTS / 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
Power:5V/2.6A
Dimensions:140mm [W] x 75mm [D] x 35mm [H]
Gross Weight:1180g
Net. Weight:700g
