CYP/// Presentations switch, multi format

Produkten är tyvärr slut i lager. :(

EL-5600

EL-5600 är en avancerad HDMI, PC, SDI, Composite, S-Video och Komponent switch / scaler. Med den här enheten kan du välja och skala vilken av källorna som skall visas på HDMI och VGA / HD utgångarna. Materialet visas nämligen simultant på båda utgångarna med deras respektive ljud. EL-5600 stödjer upplösningar upp till 1080p och WUXGA (reduced blanking). Ljud från HDMI och SDI källor kan bli "de-embeded" genom den inbyggda Digital to Analog Converter (DAC). Även analoga ljud signaler kan bli konverterade till en digital version för ultimat flexibilitet runt ljudhantering.

Utöver allt detta finns det även en lokal utgång för SDI för övervakning eller expansionsmöjligheter av den inkommande SDI signalen.


Styrning av enheten kan skötas genom en fjärrkontroll, RS-232 eller via knapparna på fronten där resultat och ev menyer visas på skärmen.

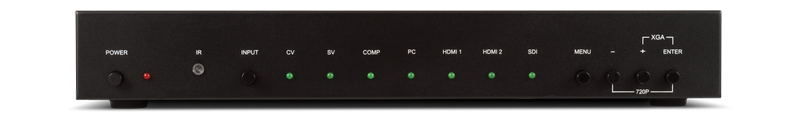

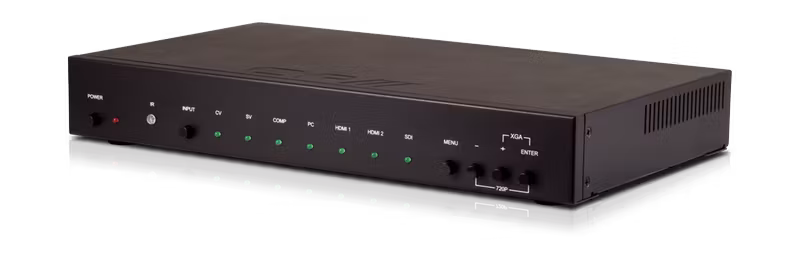

The EL-5600 presentation switch is an advanced HDMI, PC, SDI, Composite, S-Video and Component switcher/scaler. This device can scale and switch input sources and display them via the HDMI and VGA/HD outputs simultaneously with their associated audio signals at a wide range of output resolutions (up to 1080p or WUXGA reduced blanking). Audio can be de-embedded from HDMI and SDI input sources using the built-in Digital to Analogue audio converter (DAC), whilst analogue audio can also be converted to digital for ultimate flexibility in audio signal management. In addition, there is an SDI Loop Out for monitoring or extending the SDI input signal. Control is via the IR remote, RS-232, or via front panel buttons and includes an on-screen menu providing settings and system information.

HDMI, Composite Video, S-Video, PC (VGA)/HD (Component) and SDI inputs
HDMI and VGA/Component (with adaptor) outputs
SDI loop-through output
Supports analogue stereo, optical and coaxial digital inputs and optical digital output, analogue stereo output or embedding to HDMI output
Converts multiple video formats and audio input to HDMI or PC/HD and analogue stereo outputs
Supports EDID and HDCP
Supports 3D de-interlacing, noise reduction and 3D comb filter
Frame rate conversion function
Supports RS-232, IR remote control, and front panel control
Supports SDI Standards of SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
Supports SDI bit rates at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s, 1.485/1.001 Gb/s and 270 Mb/s
Enables SDI signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals
SDI Auto video mode detection (3G/SD/HD)
Video functions : Aspect Ratio Adjustment / Video Noise Reduction / Underscan & Overscan Selection / De-Interlacing

Inputs1x RCA [1x Composite]
2x RCA [1x CV Audio - Stereo (L/R)]
1x S-video plug [1x S-video]
2x RCA [1x SV Audio - Stereo (L/R)]
3x RCA [1x YPbPr Component / YCbCr Component]
2x RCA [1x YUV Audio - Stereo (L/R)]
1x Toslink [1x 2 Channel LPCM]
1x 15pin Dsub [1x VGA - RGBHV]
1x 3.5mm Stereo mini-jack [1x VGA Audio - Stereo(L/R)]
2x HDMI [2x HDMI Uncompressed AV and Data]
1x BNC [1x SD-SDI / HD-SDI / 3G-SDI]
1x 9pin Dsub [1x RS-232 Data]
Outputs1x BNC [1x Bypass Output SD-SDI / HD-SDI / 3G-SDI]
1x 15pin Dsub [1x VGA - RGBHV]
1x Toslink [1x 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Stereo(L/R)]
1x HDMI [1x HDMI Uncompressed AV and Data]
PSU:5V/3A
Dimensions340mm [W] x 189mm [D] x 40mm [H]
Net Weight1640g
Gross Weight2480g
