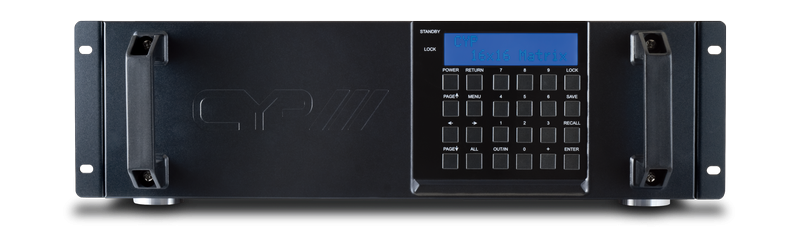

CYP/// 16x16 HDMI HDBaseT Matris (PoE)

Produkten är tyvärr slut i lager. :(


CYP/// PU-16HBT är en variant av CYP///'s nya modulära matrixväxlar med 16 HDMI in och 16 HDBaseT ut.

Den modulära basenheten har plats för två ingångskort och två utgångskort. Dessa kort finns med HDMI och VGA som ingångskort, samt HDMI, HDBaseT eller HDBaseT Lite som utgångskort.

Detta ger en oerhört flexibel lösning där man kan konfigurera dem som man vill och behöver.

The PU-16HBT modular matrix offers unparalleled levels of flexibility and performance for systems integrators and installers in any multi-zone AV environment. Utilising the latest HDBaseT™ technologies, this device allows switching and distribution of 16 HDMI sources, 2-Way IR, RS-232, and PoE (Power over Ethernet) to lengths of up to 100m using CAT5e/6/7 cable infrastructure.

This modular matrix is pre-configured with 16 HDBaseT outputs designed to be used with PU-507-RX or PU-507-WPRX Receivers which are powered using the PoE feature of the matrix. The PU-16HBT is supplied with dual removable internal PSU's which allow for easy inspection and maintenance with zero down time. Also included is a DVI output for a local monitor allowing installers to easily monitor, test, and configure the Inputs and Outputs on installation. This solution will enable installers to confidently integrate a sixteen zone multi-room AV system.

In addition, this matrix also features IP control allowing users to access and control the matrix remotely and also allow additional options for integration of third-party control systems such as Demopad and Control 4. See our download section for Control 4 driver download.

HDMI, HDCP and DVI complaint
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions : HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 1080p24: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA.
High Definition Audio supported : Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
Uncompressed data transfer over single CAT cable (100m - CAT6/7: 80m - CAT5e)
Supports RS-232, 2-Way IR, and Manual Selection Buttons
Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit
Supports RS-232 for Matrix Control, plus RS-232 pass-through : Third-party devices can be controlled in each zone via RS-232 from the head-end to the receiver, or head-end devices can be controlled via RS-232 from any receiver in any zone.
Advanced EDID management settings
Onboard Operating Temperature Diagnostics
Recall function allows users to save up to 10 pre-configured Input/Output settings
Supports 3D signals
Supports full IP control via Telnet or web GUI


16x HDMI [16x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
16x 3.5mm Stereo mini-jack [16x Infra Red Receiver]
1x 3.5mm Stereo mini-jack [1x IR Propriety Data]
1x RJ45 [1x IP Control]
1x USB Mini B [1x Service Port Propriety Data]

16x 3.5mm Stereo mini-jack [16x Infra Red Emitter]
1x DVI-I [1x Monitor Output DVI-D]
16x RJ45 [16x HDBaseT - HDMI & Propriety Data]

PSU: IEC,24V/1.25A,Redundant PSU
Dimensions: 440mm [W] x 360mm [D] x 130mm [H]
Net Weight: 12000g
Gross Weight: 13100g
