AU-11CD-4K
AU-11CD-4K är primärt en pryl för att avlyssna ljudet från en HDMI signal och släppa ut det på en separat utgång.Som bonus fungerar den även som förstärkare för HDMI signalen
Denna kan med fördel användas för att plocka ut ljudet från till exempel en AppleTV 4 för att skickas in i en soundbar eller liknande.
Det är bara att koppla in AU-11CD-4K mellan källan och skärmen via HDMI och välja vilket ljudformat som skall användas.
Just denna prylen har stöd för upplösning för 4K vilket gör det möjligt att lägga till ljud till en Hög Definierad Video ström.
The AU-11CD-4K is an advanced solution for repeating HDMI with integrated Audio de-embedding, up to 5.1.
Connect the AU-11CD-4K between your source and display via HDMI, and select the audio format required.
This device supports 4K resolutions enabling flexible audio signal management from ultra high definition video signal paths.
Features:
Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports 4K HDMI Resolutions
Supports HDMI Sample Rates up to 192 kHz
Supports Optical S/PDIF sample Rate up to 192 kHz
Supports TMDS clock frequency rate 300MHz
Supports built-in audio EDID switching between LPCM 2CH, TV (external) EDID, and Bitstream audio
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
No HDMI output connection is required to receive audio at the analogue and optical outputs
Supports 3D signals
Specification:
Input:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB Mini B [1x Service - Propriety Data]

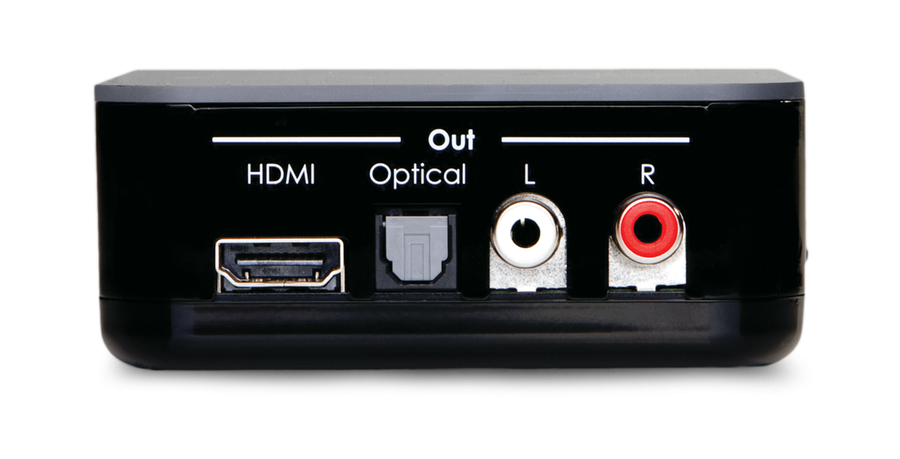

Output:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Toslink [1x Optical 2 Channel LPCM / Dolby Digital / DTS]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
Power: 5V/1.2A
Dimensions: 85mm [W] x 85mm [D] x 35mm [H]
Weight: 440g
Connect the AU-11CD-4K between your source and display via HDMI, and select the audio format required.
This device supports 4K resolutions enabling flexible audio signal management from ultra high definition video signal paths.
Features:
Compliant with HDMI, HDCP 1.2 and DVI 1.0
Supports 4K HDMI Resolutions
Supports HDMI Sample Rates up to 192 kHz
Supports Optical S/PDIF sample Rate up to 192 kHz
Supports TMDS clock frequency rate 300MHz
Supports built-in audio EDID switching between LPCM 2CH, TV (external) EDID, and Bitstream audio
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
No HDMI output connection is required to receive audio at the analogue and optical outputs
Supports 3D signals
Specification:
Input:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x USB Mini B [1x Service - Propriety Data]
Output:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Toslink [1x Optical 2 Channel LPCM / Dolby Digital / DTS]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
Power: 5V/1.2A
Dimensions: 85mm [W] x 85mm [D] x 35mm [H]
Weight: 440g
