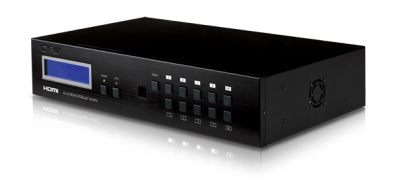

Som Cyp//s flagskepp för HDBaseT™ teknik kommer här PU-4H4HBT.
Det här är en HDMI och IR matris växel som distribuerar signalerna över cat5/6 med PoE.
Dvs med denna produkten behöver man ingen extra HDMI matris växel utan funktionen finns redan i.
As the Flagship 4x4 HDBaseT™ Matrix, the PU-4H4HBT solution offers complete HDBaseT™ convergence. Installers can switch and distribute up to 4 HDMI sources, RS-232, 2-Way IR, and PoE to lengths of up to 100m using CAT5e/6 cable infrastructure. This single box solution will enable an installer to confidently integrate an eight zone multi-room AV system.
Features:
Supports all v1.3 HDMI resolutions plus 4k
Supports uncompressed video/audio up to 10.2Gbps
Common supported resolutions: HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA
HDMI, HDCP and DVI complaint
High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM (up to 192kHz)
Uncompressed data transfer over single CAT cable (100m - CAT6: 80m - CAT5e)
Supports HDMI input up to 15m 1080p 8bit or 10m 1080p 12bit
Supports RS-232, 2-Way IR, Manual Selection Buttons, and HDMI CEC control pass through
Selectable EDID settings - TV (downstream) and STD (fixed)
Compact 2U Rack mount design
Supports 3D signals
Supports additional IR Control via a master (ALL) Input/Output
Specification:
Inputs:
4x HDMI [4x HDMI Uncompressed AV and Data]
5x Stereo mini-jack [5x Infra Red Receiver]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x Future Use - LAN - Propriety Data]
1x USB Mini B [1x Service Port - Propriety Data]
Outputs:
4x RJ45 [8x HDBaseT™ - HDMI & Propriety Data]
5x Stereo mini-jack [9x Infra Red Emitter]
Power: 24V/6.25A, DC (US/EU standards, CE/FCC/UL certified)
POE Power: 24V/6.25A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 255mm (W) x 440mm (D) x 90mm (H)
Gross Weight: 6960g
Net. Weight: 7960g
