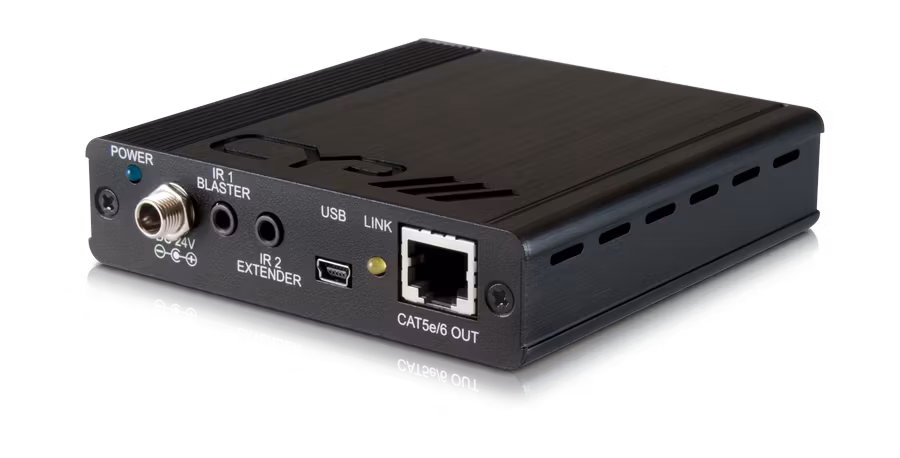

PU-515PLTX-1H
PU-515PLTX-1H gör det möjligt att skicka okomprimerade HDMI signaler över en enkel CAT5e/6/7 kabel. Med i kabeln kan man även köra RS-232, 2 vägs IR och "Power over Ethernet" (PoE) utan problem. Med fräsha kablar så kan man skicka dessa signalerna upp till 60 meter.Den här varianten av PU-515PL sändaren har även en lokal utgång för HDMI signalerna så man kan se vad det är man tutar iväg i kabeln.
????The PU-515PLTX-1H Transmitter allows uncompressed HDMI signals and to be transmitted over a Single CAT5e/6/7 cable. This device allows the distribution of Video, Audio, Power over Ethernet (PoE), RS-232 and 2-way IR control functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres. ?This variant of the PU-515PL-TX Transmitter has a simultaneous HDMI output enabling a local HDMI display to be connected whilst simultaneously distributing the signals over a single CAT5e/6/7 to a compatible HDBaseT Receiver.
HDMI, HDCP, & DVI compliant
Supports all v1.4 HDMI resolutions plus 4k.
Supports uncompressed video/audio up to 10.2Gbps
Simultaneous HDMI and CAT5e/6/7 outputs
Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz & 50/60 YUV_420 and 4096x2160@24Hz & 50/60 YUV_420)
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)
Supports distances up to 60 meters through CAT5e/6/7 cables
Supports 3D signals
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x RS-232]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU: 24V/1.25A
Dimensions: 105mm [W] x 115mm [D] x 26mm [H]
Net Weight: 540g
Gross Weight: 660g
Features:
HDMI, HDCP, & DVI compliant
Supports all v1.4 HDMI resolutions plus 4k.
Supports uncompressed video/audio up to 10.2Gbps
Simultaneous HDMI and CAT5e/6/7 outputs
Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz & 50/60 YUV_420 and 4096x2160@24Hz & 50/60 YUV_420)
Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate)
Supports distances up to 60 meters through CAT5e/6/7 cables
Supports 3D signals
Specifications:
Inputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x RS-232]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]

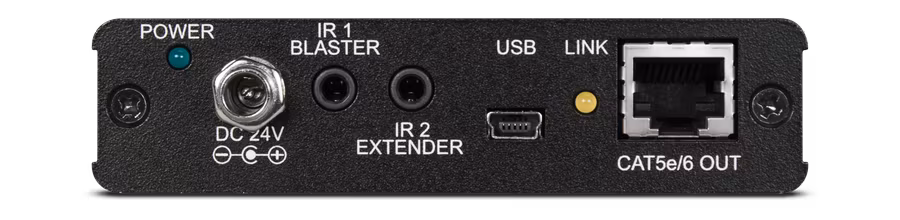

Outputs:
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT Lite HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
PSU: 24V/1.25A
Dimensions: 105mm [W] x 115mm [D] x 26mm [H]
Net Weight: 540g
Gross Weight: 660g
