CYP/// HDBaseT 2.0 Slimline Mottagare, 4K UHD, HDCP 2.2

4 700 kr



PUV-2000RX

Med PUV-2000RX kommer nu CYPs nya Slimline serie av HDBaseT sändare och mottagare.

Med fullt stöd för 4K UHD, HDBaseT 2.0, HDCP 2.2, OAR(Optical Audio Return), LAN, PoH(Power over HDBaseT) och upp till 100 meter räckvidd med Cat6a/7 kablage så är dessa en utav de mest mångsidiga mottagarna ur CYPs sortiment.

??The PU-2000RX Slimline Receiver supports video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), and LAN signals up to 100m. Utilising the latest HDBaseT™ 2.0 technology, this solution provides advanced signal management and dedicated audio pathways to ensure reliable results in the most demanding installation environments. In addition to the full 5-Play convergence, this device also incorporates OAR (Optical Audio Return) and ARC (Audio Return Channel) functions which enable audio from a compatible display to be routed back from the receiver unit to the transmitter. All audio, video, control, and power are transmitted simultaneously over a single CAT6a/7 cable up to 100m.

All of these features are encorporated into an ultra slim casing (less than 18mm thick), providing unrivalled flexibility and ease of installation.

Features:


Supports full HDBaseT™ 2.0 specification signals can be received up to a maximum distance of 100m over CAT6a/7
HDCP 2.2, HDMI and DVI compatible
HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K [email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K [email protected] 60Hz (YUV 4:2:0), 4K/[email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/[email protected] 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical audio return (OAR)
Supports optical sampling rate up to 48kHz
Audio return channel (ARC)
Dedicated channel for analogue stereo audio transmission from a compatible transmitter to receiver.
Ultra slim chassis design for ease of installation

Specifications:

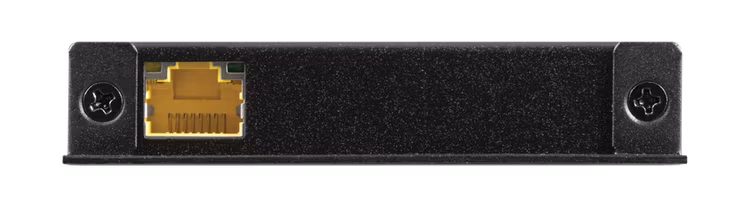

Input: 1x RJ45 [1x HDBaseT 2.0 HDMI & Propriety Data]
1x Toslink [1x Optical 2 Channel LPCM]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
Output:1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x LAN Serving]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x Phoenix (3 pin) [1x Stereo (L/R) Audio Output]
1x Phoenix (3 pin) [1x RS-232]
PSU:PoH
Dimensions:163mm [W] x 78mm [D] x 16mm [H]
Net. Weight:360g
Gross Weight:950g
