CYP/// HDBaseT Lite mottagare. 4K, PoE, RS232, IR, 60 meter

2 850 kr

2 400 kr



PU-515PL-RX

ENDAST MOTTAGAREN!


PU-515PL-RX gör det möjligt att ta emot okomprimerade HDMI signaler över en enkel CAT5e/6/7 kabel. Med i kabeln kan man även köra RS-232, 2 vägs IR och "Power over Ethernet" (PoE) utan problem. Med fräsha kablar så kan man skicka dessa signalerna upp till 60 meter med detta kittet.

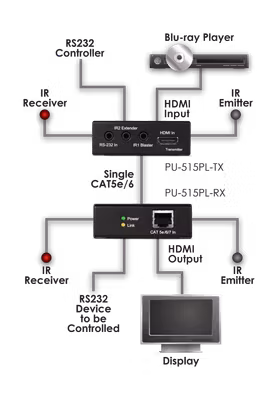

The PU-515PL-KIT allows uncompressed HDMI signals to be transmitted over a Single CAT5e/6/7 cable. This solution has the added features of RS-232, 2-way IR control, and Power over Ethernet (PoE) functionality over the same CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 60 metres.

Features:
HDMI 1.4 with 3D, 4K×2K support, HDCP and DVI compliant
Supports HDMI 1.4 (including HDCP) over a single CAT5e/6/7 up to 60m
Complies with HDBaseT™- Lite specifications
Full HD resolution support ([email protected]/36-bit), 3D over 60m, 4Kx2K over 40m and PC resolution support (VGA to WUXGA) over CAT5e/6 cable
HDMI input up to 15m with 8-bit deep colour, or 10m with 12-bit deep colour
Supports HDMI output up to 15m with 8/12-bit deep colour
Supports two-way IR, RS-232 Control, and Power Over Ethernet (PoE)
Supports High Definition LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission

Specifications:

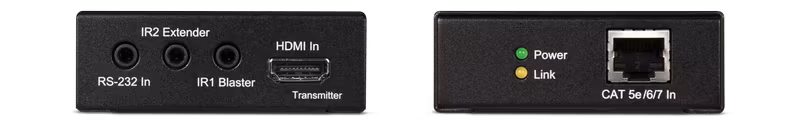

Inputs:

1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Receiver]
1x 3.5mm Stereo mini-jack [1x (TX) RS-232]
1x RJ45 [1x HDBaseT Lite (RX) HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Receiver]

Outputs:
1x RJ45 [1x HDBaseT Lite (TX) HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x (TX) Infra Red Emitter]
1x HDMI [1x HDMI (RX) Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x (RX) Infra Red Emitter]
1x 3.5mm Stereo mini-jack [1x (RX) RS-232]

PSU: 24V/1.25A
Dimensions: 65mm [W] x 70mm [D] x 20mm [H]
Net Weight: 120g
Gross Weight: 500g
