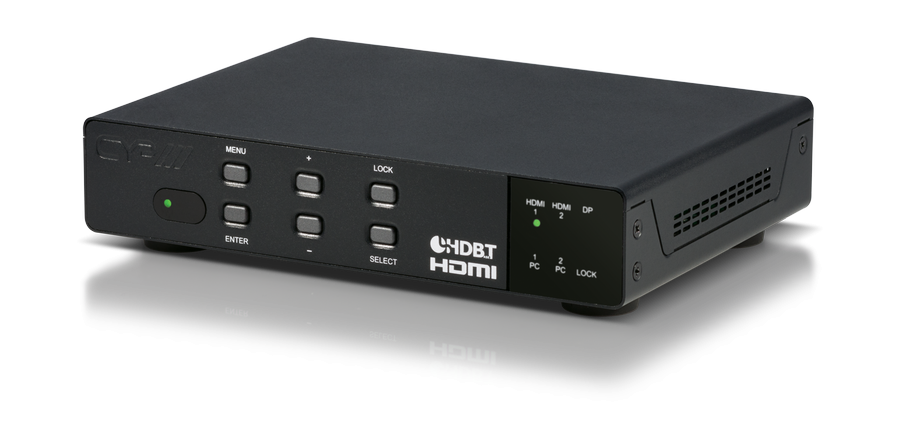

CYP/// Multi-format HDBaseT sändare med HDMI, DP och VGA input

14 650 kr



PUV-1650TX

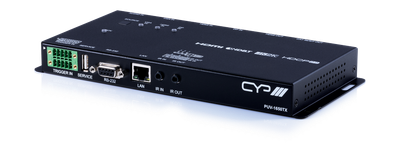

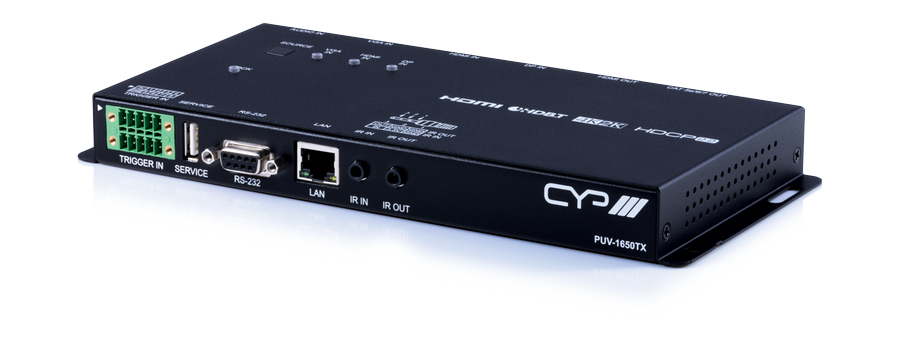

Här har vi en HDMI, Displayport och VGA sändare som använder sig av HDBaseT teknik för att sända signalerna upp till 100 meter med cat6/7 kablar.

Vill man sända 4K UHD (4:2:0 8-bit) så går det också bra men endast upp till 70 meter där en kompatibel mottagare kan skala upp eller ner signalen för att stämma med bildvisarens upplösning.

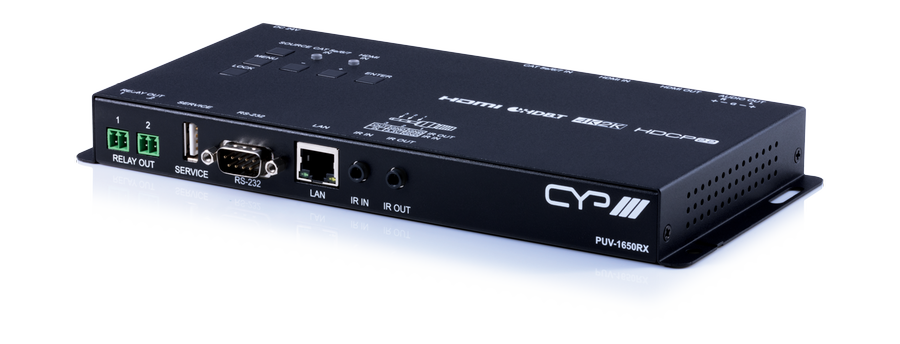

En stor fördel med PUV-1650TX/RX är att sändaren strömförsörjs av mottagaren så ingen separat kabel för ström behöver dras fram till sändaren.

Sändaren har även ett interface för externa knappsatser som CR-CS2 eller CR-TG1. samt en knapp på ovansidan chassit för att byta källa.


The PUV-1650TX has been designed with collaboration in mind, it's the perfect turnkey solution for extending and switching video in commercial applications. The PUV-1650TX/RX not only provide total AV conversion and extension, they also add a level of system control throughout the meeting space. The unit includes HDMI, DisplayPort & VGA inputs offering total meeting space compatibility.

Sources can be transmitted upto 100m (1080p) and 4K@60Hz (4:2:0 8-bit) can be transmitted over 70m over CAT 6/7 cable. The compatible receiver can scale the HDBaseT video source or local HDMI input to match the connected displays resolution requirements.

The PUV-1650 differs from other HDBaseT extender sets with its additional layer of control. This unit provides an interface for a remote control keypad or trigger interface which could be placed in a variety of installation scenarios (Lecterns, meeting room tables, podiums, etc...). This interface allows the user to control a wide range of devices and macro commands from the touch of a button over the local network. Complimentary control products within the CYP range include the CR-TG1 & CR-KP products.

The TX also features 'Top Panel' controls for direct control of the device (with OSD) and the added benefit of a WebGUI, RS232 and LAN control. Using the  WebGUI interface timed events can be stored on the unit for added system control.

A key feature of the PUV-1600 series is that the power is sent to the TX from the mains powered RX. This offers additional flexibility when integrating and designing meeting room solutions.


Features:

  • HDMI, DisplayPort & VGA inputs
  • Input resolution support upto 4K@60Hz (4:4:4 8-bit) HDMI & DisplayPort
  • HDBaseT 5Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-directional IR/RS-232 pass-through)
  • HDCP2.2 Compliant
  • HDBaseT Supported resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
  • 4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
  • Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
  • WebGUI user programable control interface for timed events within the meeting space : With battery backup
  • Supports HDCP repeating and CEC functions
  • Supports 3D signals
  • OSD, WebGUI, RS232, LAN & Push Button Control

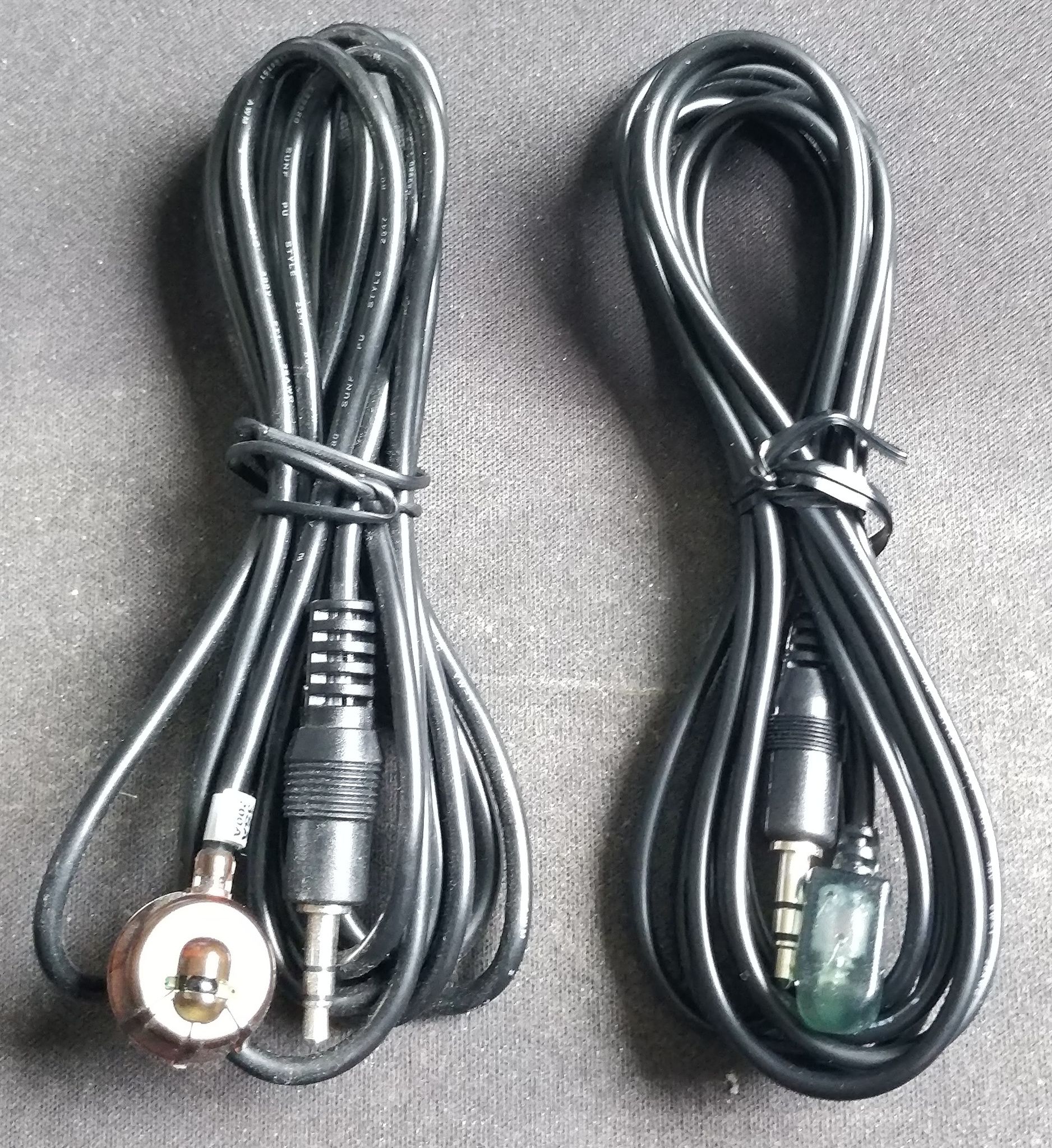

  • IR Learning & Re-transmission of control signals
  • Control Trigger Input
  • Collaboration Mode for easy setup with compatible devices

Specifications:

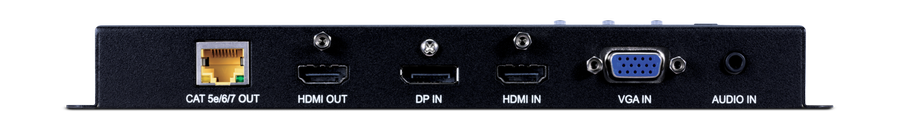

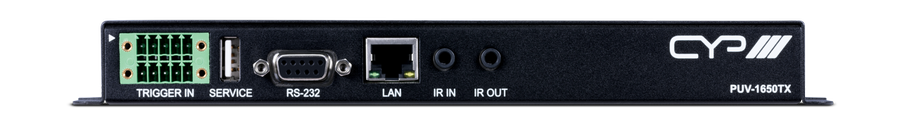

Inputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x Display Port [1x Display Port Uncompressed AV]
1x 15pin Dsub [1x RGBHV]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x Phoenix (10 pin) [1x Trigger In (8)]
1x 9pin Dsub [1x RS-232 Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x LAN Serving]
1x USB Type A [1x Service Port Propriety Data]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU:
PoH
Dimensions
117mm [W] x 213mm [D] x 25mm [H]
Net Weight
400g
Gross Weight
650g
