CYP/// Avancerad Multi Input HDMI/VGA - HDBaseT Presentations Switch

13 500 kr



EL-7500V

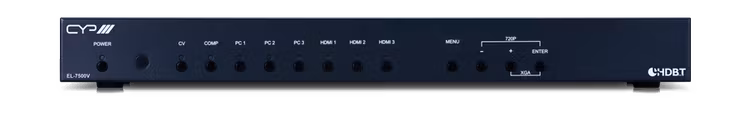

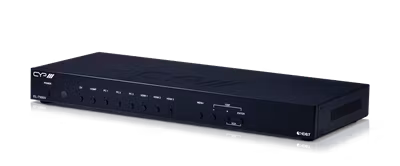

EL-7500V är en avancerad HDMI, VGA, Komposit och Komponent switch som går att rack-montera.
Switchen kan styras genom den medföljande fjärrkontrollen, RS-232, över IP, WebGUI eller manuellt med hjälp av knapparna på fronten.
Både digitalt och analogt stereo ljud stöds via den inbyggda DAC (Digital to Analog Converter) och ADC (Analog to Digital Converter) funktionaliteten.

HDBaseT gör det möjligt att skicka ljud och video upp till 70 meter över en singel Cat 5e/6/7 kabel. Switchen stödjer även PoH över HDBaseT, vilket gör det möjligt att strömförsörja
kompatibla HDBaseT mottagare.


The EL-7500V is an advanced rack-mountable HDMI, VGA, Composite and Component presentation switcher. This device can scale and switch input sources to its HDMI, VGA and HDBaseT™ outputs, with their associated audio signals to the native resolutions supported by the connected display. Control is via the IR remote, RS-232, IP, WebGUI or via manual selection buttons with OSD (On Screen Display). Both digital and analogue stereo audio is supported via a built-in DAC (Digital to Analogue Converter) and ADC (Analogue to Digital Converter).


The HDBaseT output provides great versatility to extend your audio and video up to 70 metres over a single run of Cat.5e/6/7 cable. The HDBaseT output can provide 48V PoH power to compatible HDBaseT Receivers.

The EL-7500V is the perfect solution for any educational or commercial environment requiring integration of multiple sources and signal formats to multiple simultaneous output formats.

Feature:

  • HDMI 1.3 and DVI 1.0 compatible
  • HDCP 1.1 compliant
  • Multiple video and audio inputs: 3 HDMI, 3 VGA, 1 Component Video, 1 Composite Video, and 8 Stereo audio
  • Supports switching and scaling of multiple AV inputs for display over mirrored HDMI, HDBaseT and VGA outputs
  • Supports input and output resolutions up to 1080p/WUXGA (RGB)
  • Supports pass-through of LPCM 2.0 audio
  • Supports 3D de-interlace, noise reduction, and 3D comb filtering for composite video sources
  • Frame rate conversion support
  • Supports analogue to digital (ADC) and digital to analogue (DAC) audio conversion, Em-Bedding & De-Embedding
  • Quick output resolution switching via hot keys
  • HDBaseT feature support: HD Video and Audio, Ethernet, 48V PoH, and Control (bidirectional IR/RS-232 pass-through)
  • HDBaseT output provides 48V PoH to compatible HDBaseT Receivers
  • Supports EDID and HDCP management
  • Remote control provides discrete input source selection

Specifications:
Inputs:

3x HDMI [3x HDMI Uncompressed AV and Data]
3x 15pin Dsub [3x VGA RGBHV]
3x RCA [1x YUV YPbPr Component / YCbCr Component]
1x RCA [1x Composite]
4x RCA [2x Analogue Stereo (L/R)]
6x 3.5mm Stereo mini-jack [6x Analogue Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x RJ45 [1x LAN Serving]
1x USB Type A [1x Service Port Propriety Data]
2x 9pin Dsub [2x RS-232 Data]
1x 15pin Dsub [1x VGA RGBHV]

Outputs:

1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x HDBaseT HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)]
1x RCA [1x Coaxial 2 Channel LPCM]
1x 15pin Dsub [1x VGA RGBHV]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]

PSU: 24V/6.25A

Dimensions: 432mm [W] x 183mm [D] x 44mm [H]

Net Weight: 2200g

Gross Weight: 3100g
