AU-11SA
AU-11SA är en avancerad lösning av HDMI förstärkning med möjlighet att plocka ut ljudet på vägen.
Koppla helt enkelt in den mellan källan och din HDMI skärm, välj rätt ljud format och plocka ut ljudet separat till din förstärkare.
Den här enheten har en avancerad firmware som gör det möjligt att plocka ur ljudet ur HDMI signalen utan att det måste vara en HDMI display inkopplad. (ingen "sink-end" behövs)
The AU-11SA is an advanced solution for HDMI to HDMI repeating with Audio de-embedding. Its compatible with v1.3 HDMI specifications, a cutting edge technology which defines the transfer of deep colour (12 bit) video with a high bandwidth of up to 225Mhz. Connect to source and display (HDMI), select the required audio format & output your audio format to your amplifier.This device has advanced firmware allowing audio to be de-embedded without the need to connect the HDMI display (no sink-end required).
HDMI audio de-embedder with built in repeater
Compliant with v1.3 HDMI, HDCP 1.1 and DVI 1.1 standards
Supports un-compressed digital LPCM 7.1, 5.1 or 2 channels and compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio) through HDMI input and output ports
Output resolution follows input resolution. Video pass though, no scaling
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
Supports LPCM 7.1, 5.1 or 2 channel output through multichannel analogue output ports
Supports digital Dolby 5.1/2 and LPCM 2 channels output through optical output
Supports CEC bypass Feature removed on newer models
Supports 3D signals
Supports xvYCC
Feature:
HDMI audio de-embedder with built in repeater
Compliant with v1.3 HDMI, HDCP 1.1 and DVI 1.1 standards
Supports un-compressed digital LPCM 7.1, 5.1 or 2 channels and compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio) through HDMI input and output ports
Output resolution follows input resolution. Video pass though, no scaling
HDMI signal amplification and equalisation supporting HDMI cable distance of 10m either side of the device at full 1080p.
Supports LPCM 7.1, 5.1 or 2 channel output through multichannel analogue output ports
Supports digital Dolby 5.1/2 and LPCM 2 channels output through optical output
Supports 3D signals
Supports xvYCC
Specifications:
| Input: | 1x HDMI [1x HDMI Uncompressed AV and Data] |

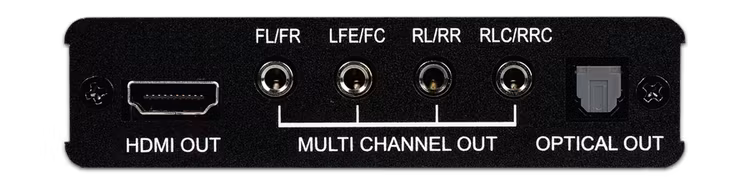

| Output: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 3.5mm Stereo mini-jack [1x Stereo(L/R)] 1x 3.5mm Stereo mini-jack [1x LowFrequencyEffect(LFE) & Front Centre(FC)] 1x 3.5mm Stereo mini-jack [1x RearLeft(RL) & RearRight(RR)] 1x 3.5mm Stereo mini-jack [1x RearLeftCentre(RLC) & RearRightCentre(RRC)] 1x Toslink [1x Optical DTS / Dolby Digital / 2 Channel LPCM] |
| : | : |
| PSU: | 5V/2.6A |
| Dimensions: | 102mm [W] x 146mm [D] x 25mm [H] |
| Net. Weight: | 500g |
| Gross Weight: | 780g |
