CYP/// HDMI eller VGA över IP sändare för väggmontage, USB, 4K, HDCP2.2, PoE, CEC

9 100 kr



IP-7000TXWP

Väggmodellen av en IP-7000TX, helt enkelt samma sak i annan förpackning.

Den här sändaren är framtagen för att, på ett lätt sätt, göra det möjligt att skicka ljud och bild från en HDMI eller VGA källa till en eller flera mottagare över ett befintligt nätverk.
Flera IP-7000TXWP kan kombineras i ett nätverk för att sända ifrån flera källor eller ifrån flera rum samtidigt.


The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are almost endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.

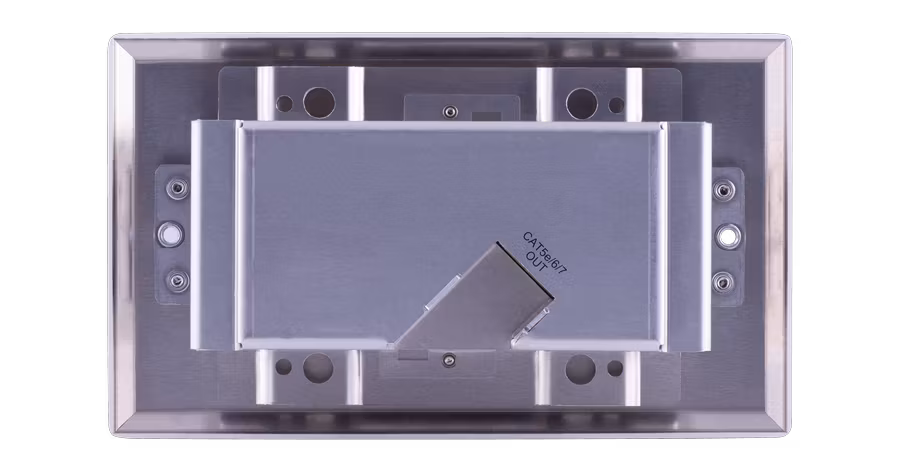

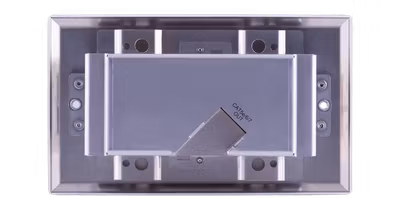

This wall plate Transmitter adds flexibilty to the IP-7000 series by allowing a clean and simple wall mountable option.

The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.

This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input, providing the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay.

Control is via Telnet, IR Remote, WebGUI and RS-232 commands with On-screen Display (OSD) feedback messaging.

Features:

  • HDCP 2.2, HDMI and DVI Compatible with HDMI and VGA input
  • Supports video transmission over IP up to 100m
  • Supports resolutions up to 4K2K@30Hz (RGB 4:4:4) or 4K2K@60Hz (YUV 4:2:0)
  • Supports pass through of HD Audio formats (LPCM, Dolby® Digital and DTS®)
  • Independant Audio Transmission 3.5mm Jacks
  • 2 gang UK and Euro Wall plate design
  • Features 1 x USB port
  • Controlled via IP-CS7 hardware controller

Specification:

Inputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 15pin Dsub [1x VGA RGBHV]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x USB Type B [1x USB Propriety Data]
Outputs
1x RJ45 [1x HDMI & Propriety Data]
1x 3.5mm Stereo mini-jack [1x Analogue audio Stereo(L/R)]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
POE PSU:
PoE
PSU:
5V/2.6A
Dimensions
152mm [W] x 81mm [D] x 46mm [H]
Net Weight
250g
Gross Weight
450g
