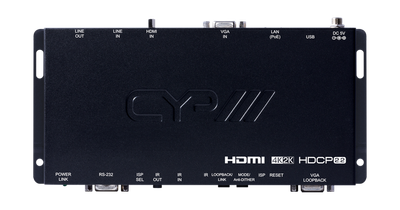

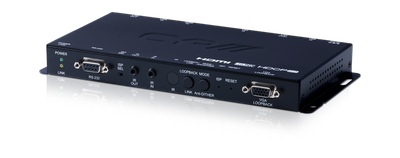

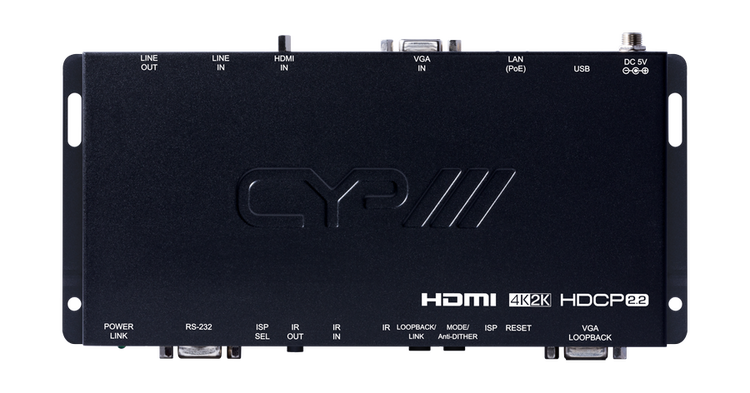

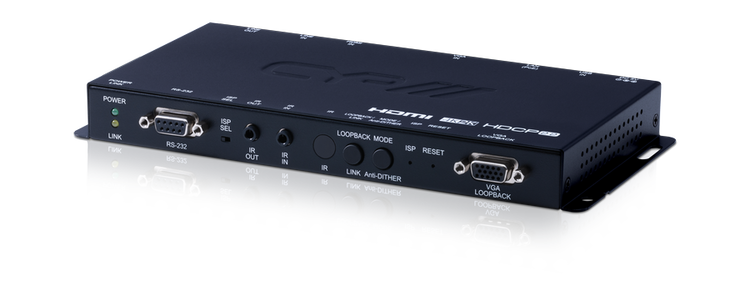

IP-7000TX
Den här sändaren är framtagen för att, på ett lätt sätt, göra det möjligt att skicka ljud och bild från en HDMI eller VGA källa till en eller flera mottagare över ett befintligt nätverk. Flera IP-7000TX kan kombineras i ett
nätverk för att tillhandahålla flera källor.
The IP-7000 series allows installers to configure a unique signal distribution system via a dedicated IT Network Infrastructure. You are in control when deciding how many inputs and end-points you require from the system; whether it be one transmitter to many receivers or many to many, your possibilities are endless. Simplicity is at the core of the IP-7000 as both the transmitter and receiver support PoE.
The video and audio can be transmitted via an IP network for distances up to 100m through a single network switch. The transmission distance can be further extended up to 100m between network switches and supports Gigabit networks.
This system also features bi-directional IR pass-through, analogue line level in/out, and microphone input provide the user with variety of audio options. The USB function allows the system to act like USB hub which, when combined with the VGA input/Output feature, it allows the system to be used as a KVM switch. Adding extra devices allows the user to cascade the system enabling them to extend the transmission distance without signal loss or introducing delay. Control is via On-screen Display (OSD), Telnet, IR Remote, WebGUI and RS-232 commands.
Features:
- HDCP 2.2, HDMI and DVI Compatible with HDMI and VGA input
- Supports video transmission over IP up to 100m
- Supports resulutions up to 4K2K@30Hz (RGB 4:4:4) or 4K2K@60Hz (YUV 4:2:0)
- Supports pass through of HD Audio formats (LPCM, Dolby® Digital and DTS®)
- Independant Audio Transmission 3.5mm Jack
- Features 2 x USB 1.1 and 2 x USB 2.0 ports
- 3 x RJ45 LAN Ports
- Mic Output 3.5mm Jack
- Control via OSD, Telnet, Web Gui, IR Remote and RS-232
Specification:

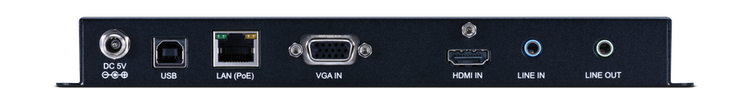

| Input: | 1x HDMI [1x HDMI Uncompressed AV and Data] 1x 15pin Dsub [1x VGA RGBHV] 1x 9pin Dsub [1x RS-232 Data] 1x USB Type A [1x USB Propriety Data] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] |

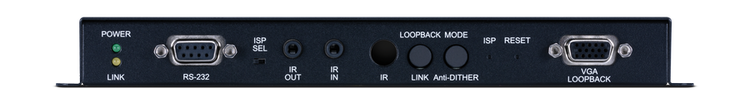

| Output: | 1x RJ45 [1x PoE HDMI & Propriety Data] 1x 3.5mm Stereo mini-jack [1x Analogue Stereo(L/R)] 1x 3.5mm Stereo mini-jack [1x Infra Red Emitter] 1x 15pin Dsub [1x VGA Loop RGBHV] |
| POE PSU: | PoE |
| PSU: | 5V/2.6A |
| Dimensions: | 108mm [W] x 231mm [D] x 25mm [H] |
| Net. Weight: | 660g |
| Gross Weight: | 1130g |
