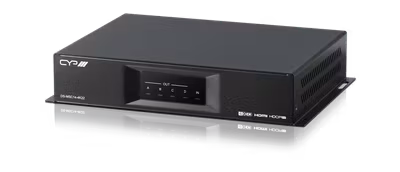

CYP/// Multi-Screen Controller 1 in 4 ut 4K, HDCP 2.2

19 700 kr



DS-MSC14-4K22

Digital Signage Multi-Screen Controller (DS-MSC), en enkel produkt som delar en källa till 4 skärmar, nu med 4K och HDCP 2.2 stöd.

Produkten används när man vill visa en bild eller video över flera skärmar.


Ni har säkert sett en vägg med flera skärmar som visar en bild när ni varit på en och annan mässa.

Vid dessa tillfällen använder man sig ofta av en Multi-Screen Controller.


The DS-MSC14-4K22 has been designed to provide an easier and more convenient way to create and deploy video wall installations.

Delivering complete scalability, and capable of driving up to four 1080p displays, all from a single 4K UHD source. For larger installations multiple DS-MSC14-4K22 units can be combined to create up an 8x8 configuration.

Each of the 4 outputs support 1080p@60Hz to generate a true 4K video wall. Built-in advanced EDID management, user configurations and advanced HDCP processing allows the DS-MSC14-4K22 to suit almost any installation scenario. Control is via RS-232, Telnet IP and PC application which allow full control of the DS-MSC14-4K22 from adjusting the bezel correction to pre-set video wall layouts.

Features:

  • Input supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)
  • Audio supported LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD
  • Dedicated PC application for easy control of the unit
  • The DS-MSC14-4K22 can be combined together using a HDMI splitter allowing the creation of larger video walls.
  • The DS-MSC14-4K can be controlled via RS-232, Telnet IP control or our PC control software which can be found on the downloads tab of the website.
  • Video wall configurations can be pre-loaded into the our control application allowing simple switching between the video wall layouts.
  • HDMI 2.0, HDCP 2.2 and DVI compliant

Specification:


Inputs1x HDMI [1x HDMI Uncompressed AV and Data]
1x RJ45 [1x IP Control]
1x 9pin Dsub [1x RS-232 Data]
1x USB Type A [1x Service Port Propriety Data]

Outputs4x HDMI [4x HDMI Uncompressed AV and Data]

PSU:24V/1.25A
Dimensions231mm [W] x 174mm [D] x 44mm [H]
Net Weight980g
Gross Weight1500g
