Muxlab HDMI sändare för montering på vägg, Bi-Dir RS232, UHD-4K, 60 m

10 000 kr



Här har vi en HDMI/VGA/Audio sändare som skall väggmonteras.

Signalerna skickas sedan med hjälp av HDBaseT för att kunna leverera en så när som loss-less signal till valfri kompatibel mottagare så som:

500451-RX eller 500454-RX.

Val av källa kan väljas manuellt eller ställas in som "auto-switching" genom en knapp på vägguttaget.

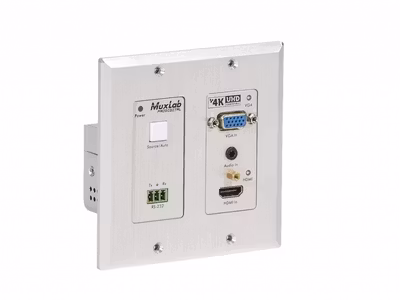

The HDMI – VGA/Audio Wall-Plate Transmitter is a Decora® style transmitter that installs in a double-gang wall box to provide a convenient interface for HDMI / VGA input sources.

It has one (1) HDMI IN, one (1) VGA IN, one (1) Audio In and one (1) HDBaseT Out. It supports VGA with full HD scaler, and HDMI 1.4 with 4k& 3D, input signals support auto-switching and manual-switching.

The HDBaseT output supports 60m UHD video transmission, enables bi-directional RS232 communication between HDMI – VGA/Audio Wall-Plate Transmitter and remote device. The unit is powered by a 12VDC Power Supply.

Note: Face-plate (model 500919) sold separately.

Selectable HDMI / VGA with audio input
High banddwidth: 10.2 Gbps
Transmission of HDMI signals up to 4K
HDCP compliance, equipped with HDCP auto-tracking solution
Supports firmware upgrading via USB
Aluminium design for elegant and better cooling
Support of VGA output resolution up to 1920x1200
Built-in scaler function supports scaling HDMI/VGA signals to match the native resolution of the display
Compliant with HDMI 1.4, supports 1080p and 3D
Auto-switching capability
Support of multiple control methods including front panel buttons and RS232. Serial interface supports bi-directional RS232 pass-through control
Powerd by local 12VCD power supply
