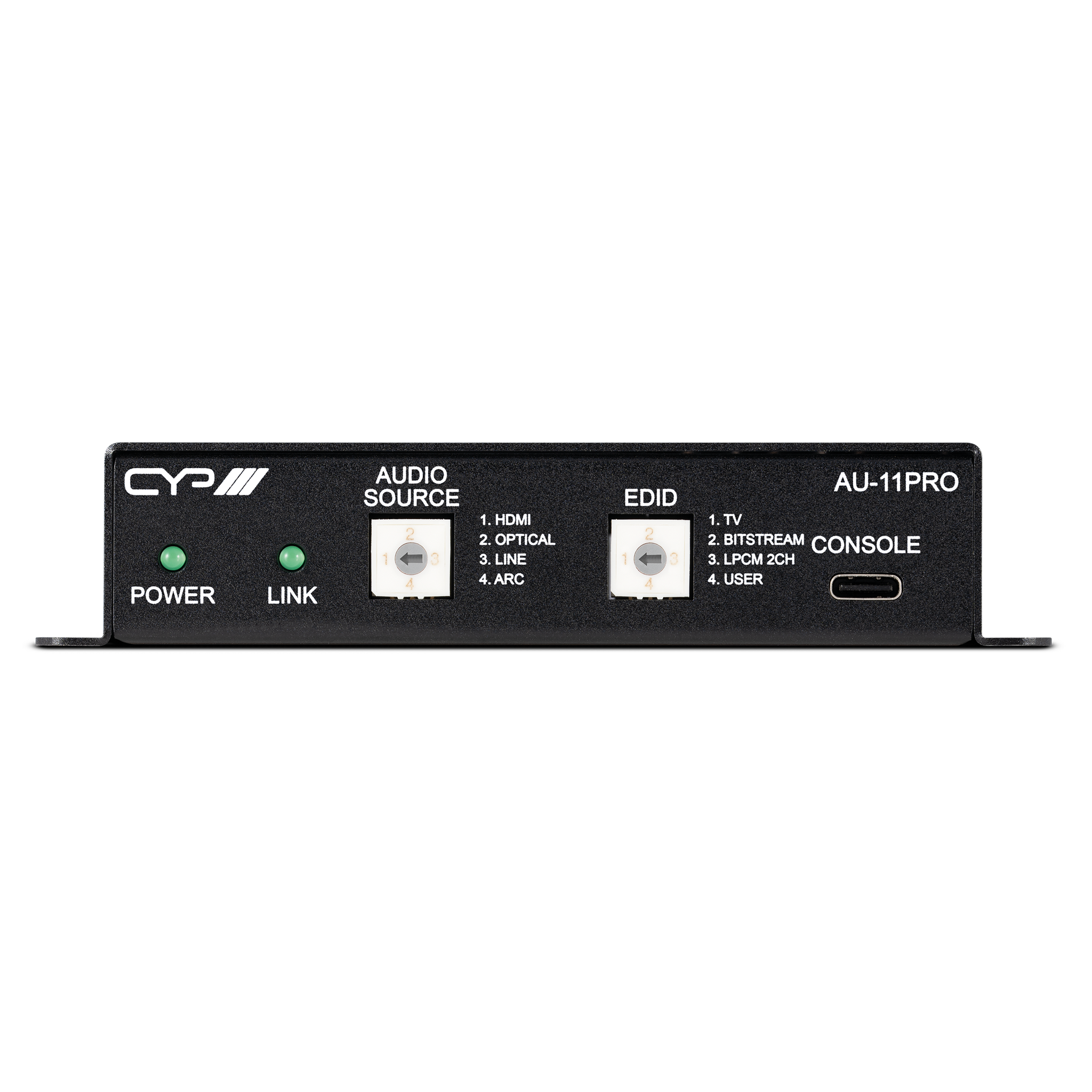

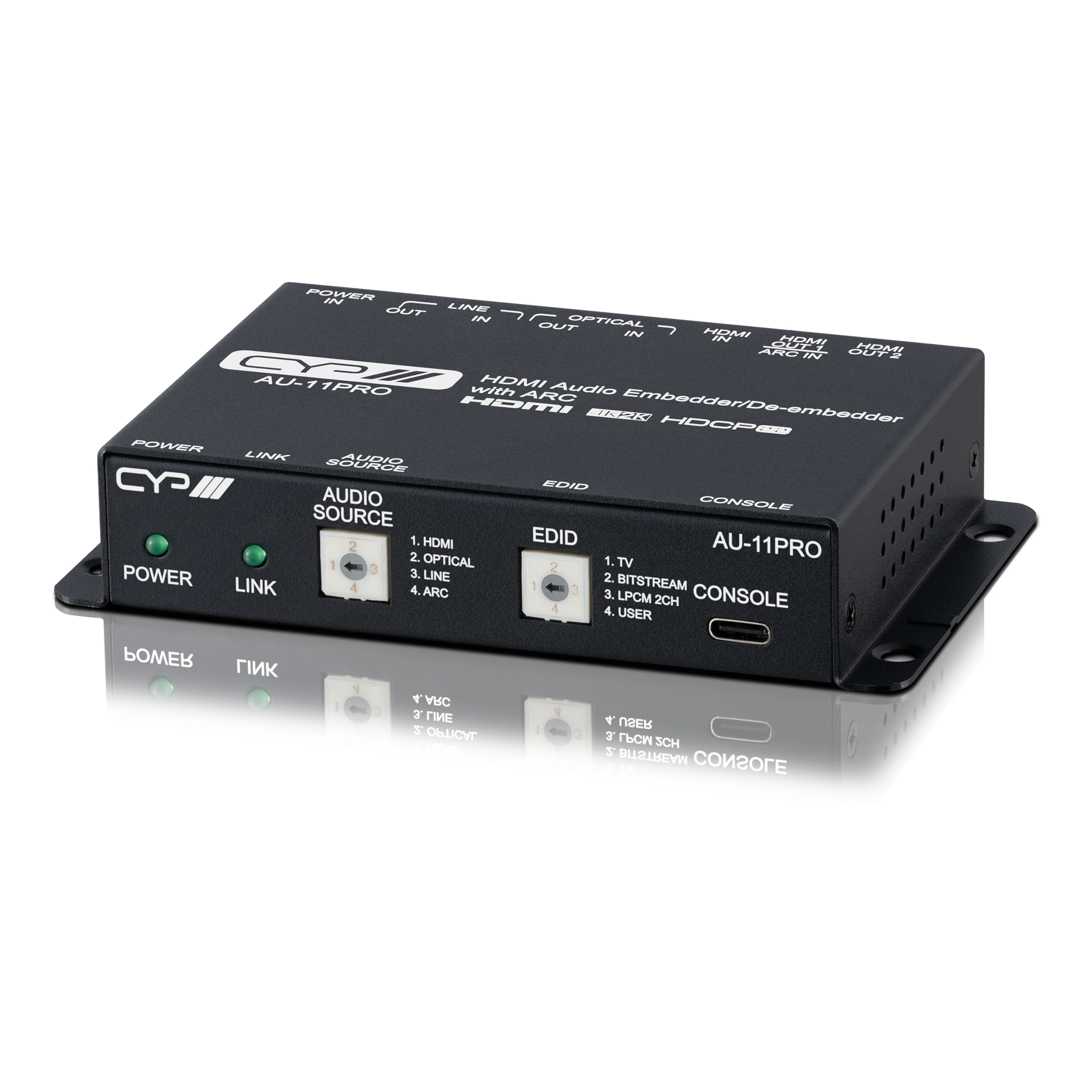

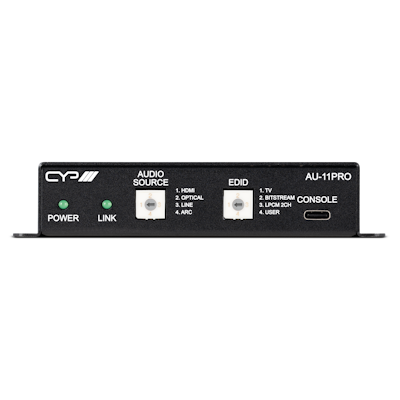

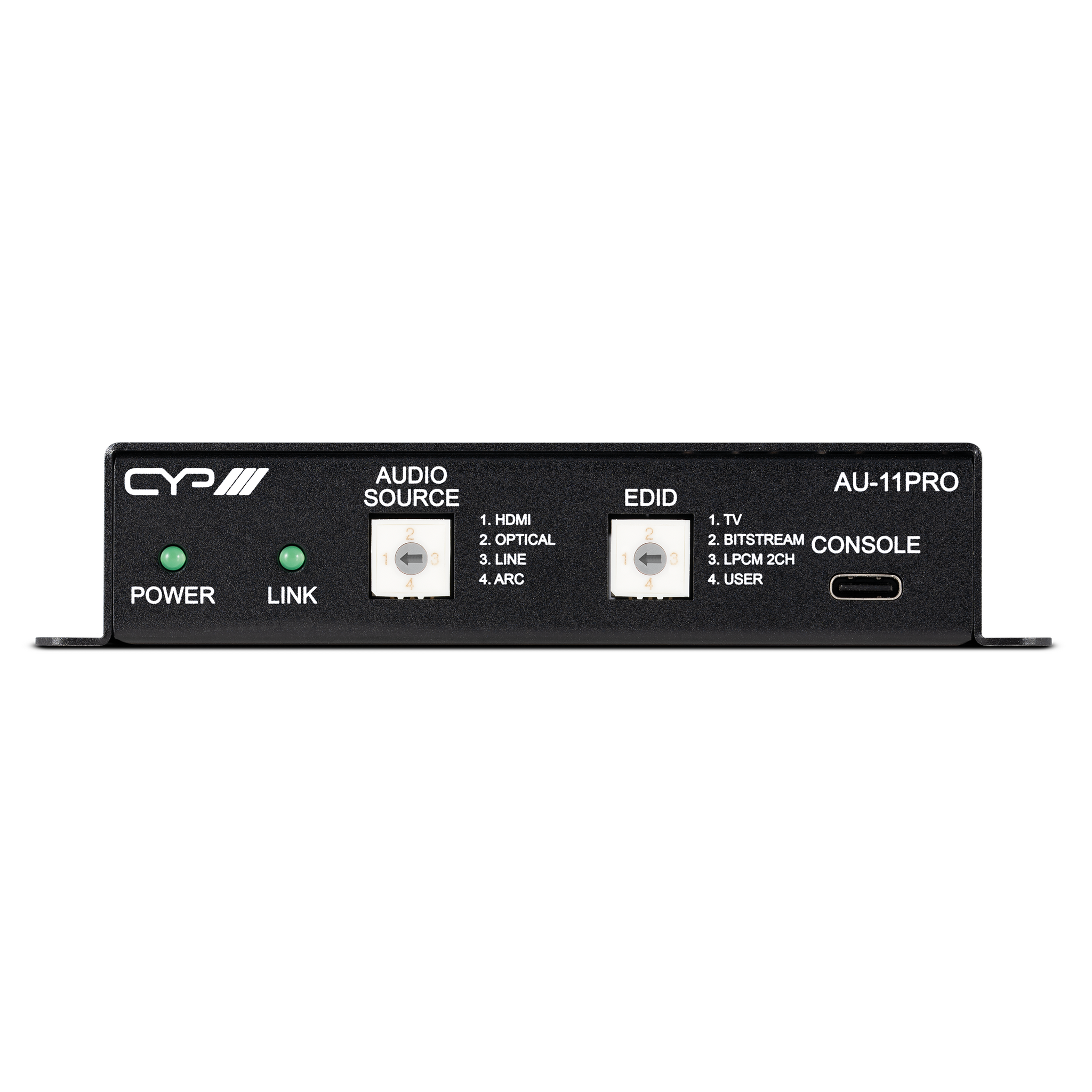

CYP/// Full 4K HDMI Ljud embedder/de-embedder med ARC

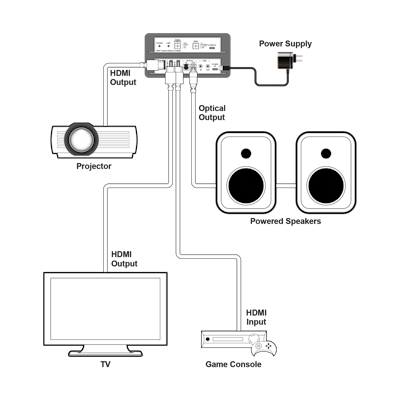

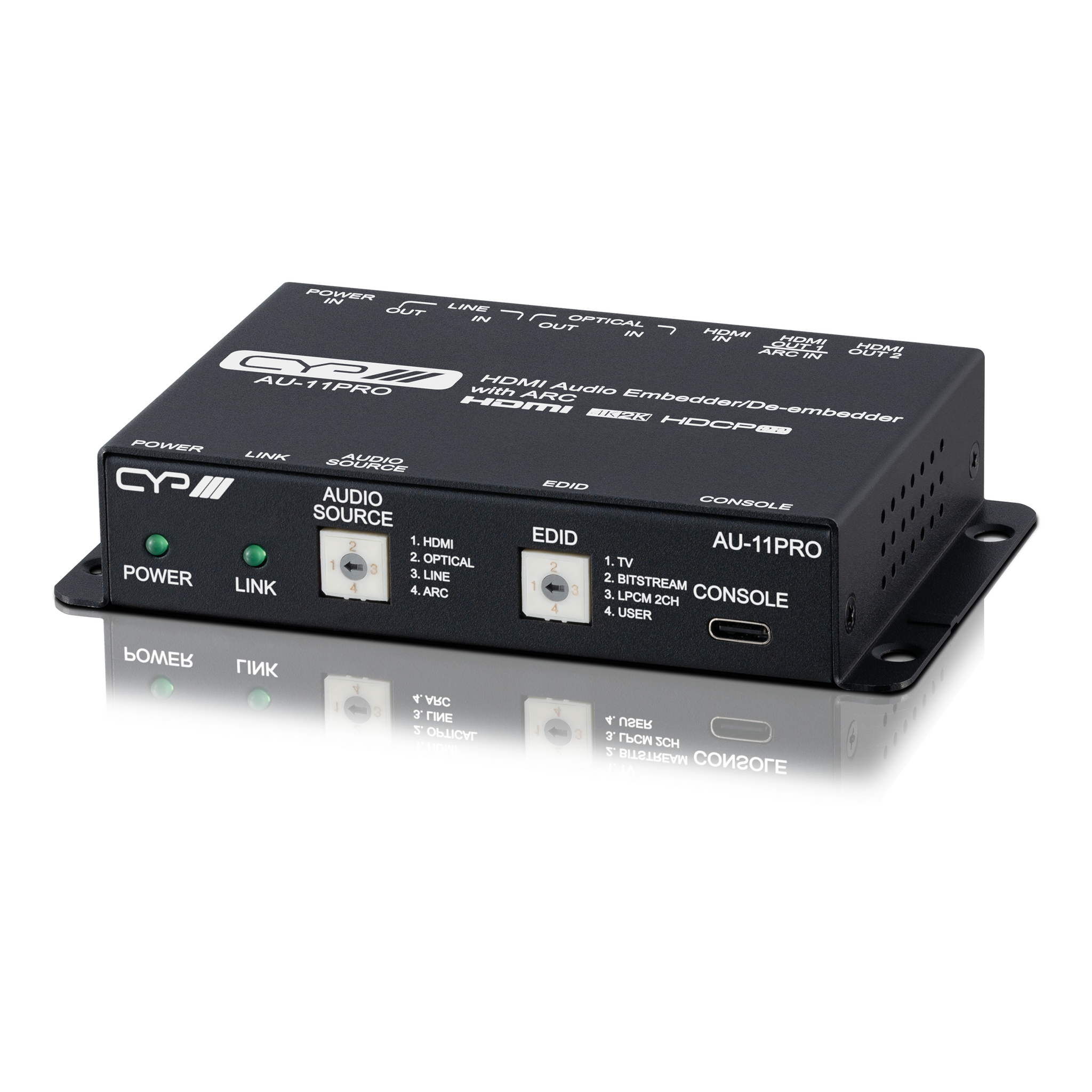

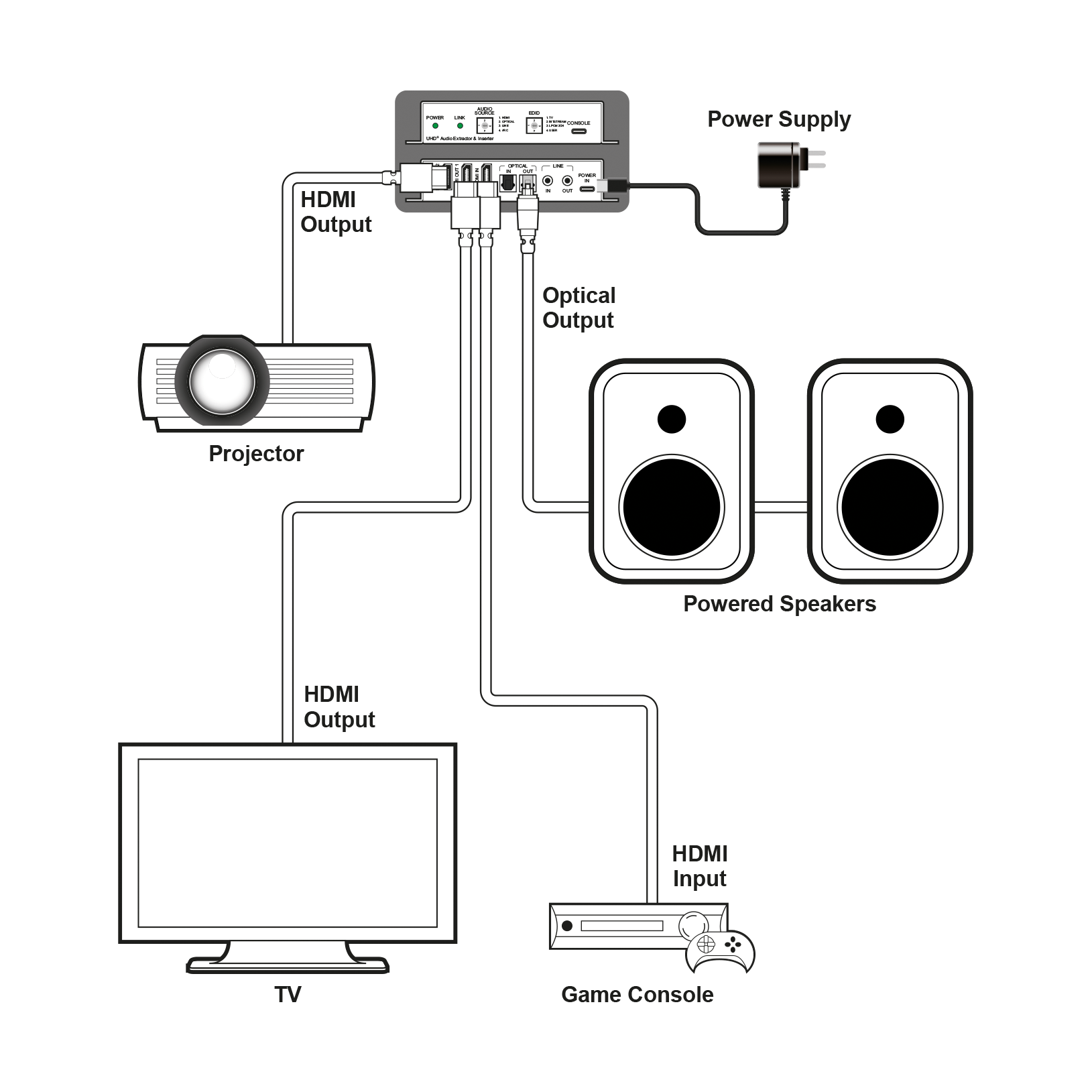

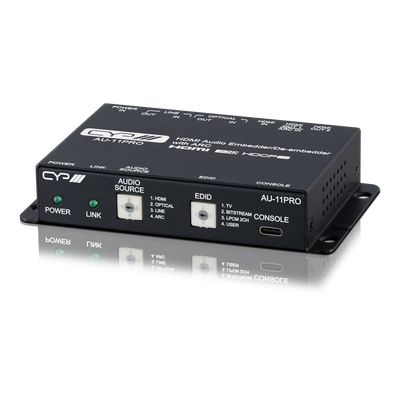

The AU-11PRO is a Audio Extractor & Inserter that can take the selected audio from an HDMI, ARC (from HDMI Output 1), optical, or analogue source and output it simultaneously over the unit’s HDMI, optical, and analogue outputs. This allows the user to convert an audio source using high quality ADC/DAC processing for use with powered speakers or an AV receiver that otherwise would not be able to support the original format. The HDMI input and mirrored HDMI output ports support resolutions up to 4K@60Hz (4:4:4, 8-bit) and advanced video content such as HDR (High Dynamic Range), 10-bit color is also supported. The built-in EDID management controls allow the user to select from multiple pre-configured EDIDs, including the option for a custom user uploaded EDID.

Feature:

HDMI 2.0 and DVI 1.0 compliant
HDCP 1.x and 2.2 compliant
1 HDMI input and 2 mirrored HDMI outputs
Supports up to 4K UHD + (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video input and output
Supports pass-through of 10/12-bit HDR sources
HDMI supports pass-through of multiple audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream

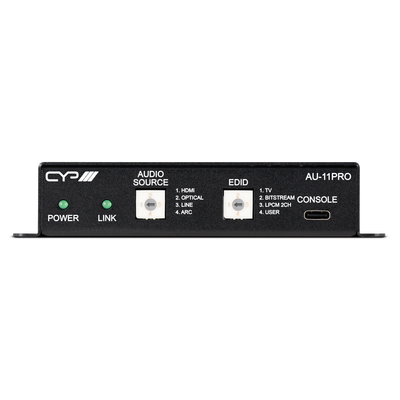

Freely selectable audio extraction source Note: Optical output is limited to LPCM 2.0 and standard Bitstream sources. Analog audio output is limited to LPCM 2.0 sources Controllable via front panel selector dials and RS-232 style control via a Virtual COM port over USB-C
Provides EDID management with EDID bypass, 2 pre-made EDIDs, and a user modifiable EDID

Specification:

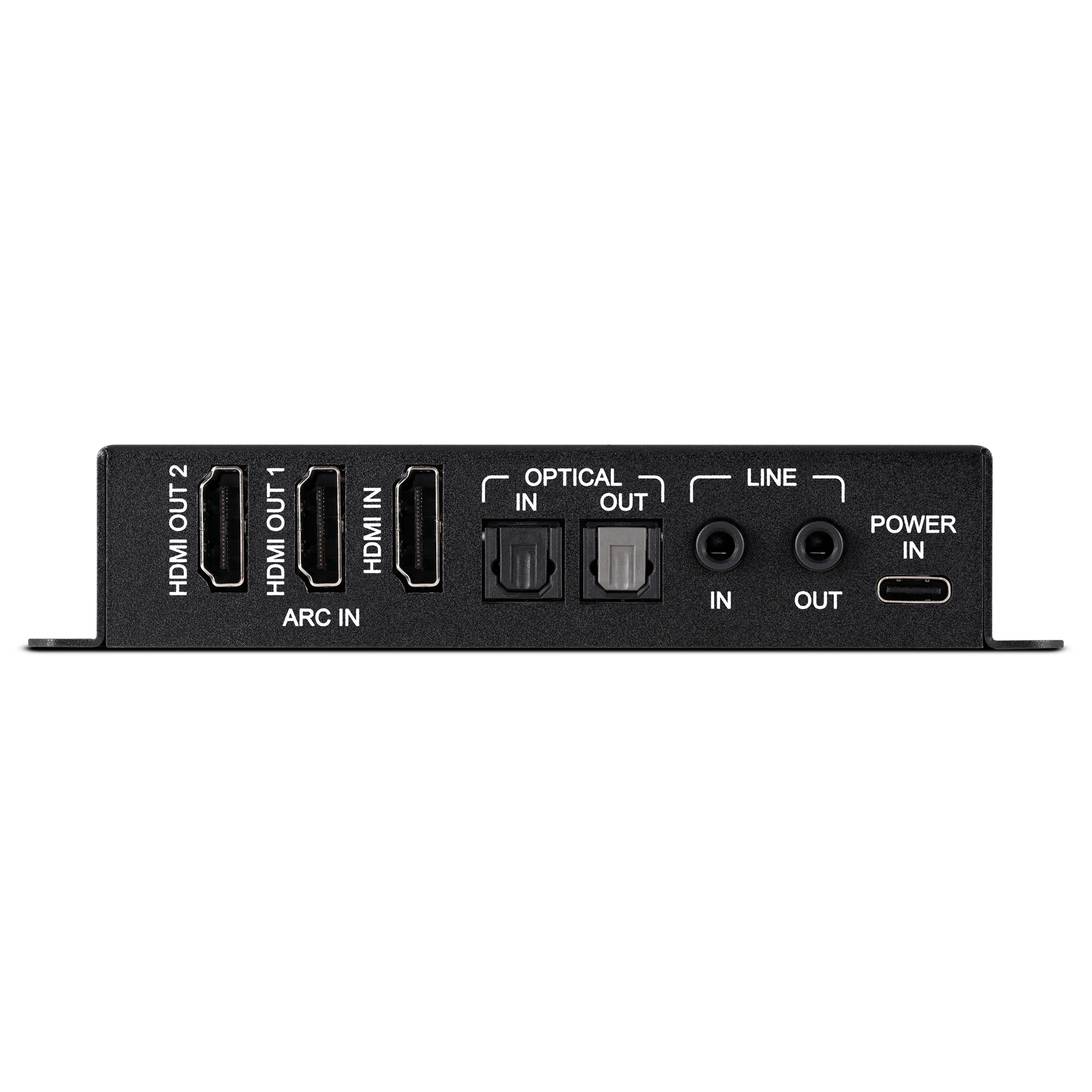

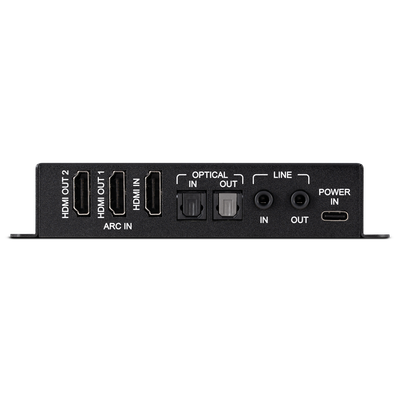

Input:	1x HDMI Uncompressed AV and Data [1x HDMI] 1x Optical 2 Channel LPCM [1x Toslink] 1x Analogue Stereo(L/R) [1x 3.5mm Stereo mini-jack] 1x Control & Service Port Proprietary data [1x USB-C]
Output:	1x HDMI (one with ARC in) Uncompressed AV and Data [1x HDMI] 1x Optical 2 Channel LPCM [1x Toslink] 1x Analogue Stereo(L/R) [1x 3.5mm Stereo mini-jack]
PSU:	5V/3A DC (US/EU standards, CE/FCC/UL certified)
Dimensions:	128mm [W] x 75mm [D] x 25mm [H]
Net. Weight:	280g
Gross Weight:	660g
