CYP/// DS-VWC Video Wall Processor / Videoväggsprocessor


https://www.facebook.com/Digitaltvexperten/videos/313252992673070/

7 950 kr

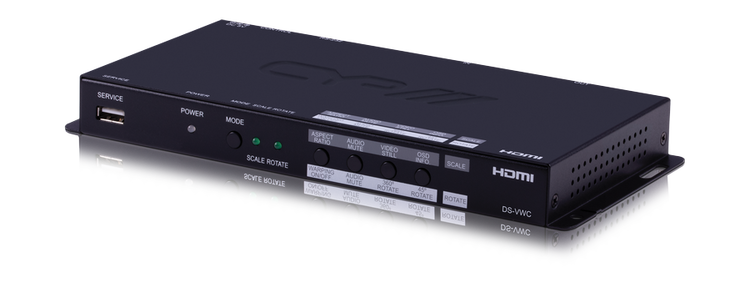

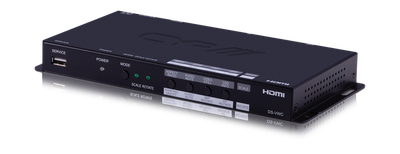

DS-VWC

Med CYP///'s nya videoväggsprocessor är det bara fantasin som sätter gränserna för vad du kan göra med videopresentationer och digital signage. Du kan blanda i princip hur många skärmar du vill, i vilka storlekar du vill, vilka bildförhållanden (aspect ratio) dom helst, du kan luta skärmarna, vrida på dem, blanda horisontella, vertikala, kvadratiska, rektangulära mm mm.

Bygg ett kollage av skärmar, 10, 20, 30 st i olika storlekar, olika förhållande, olika form. Koppla de till en eller flera HDMI-splitters tillsammans med en DS-VWC till varje skärm. Koppla upp dig från en dator med programvaran, sätt din arbetsyta och börja fördela ut delbilderna på de respektive skärmarna.


The DS-VWC HDMI Video Wall Rotation Processor is capable of scaling and rotating the input source to nearly any angle and size desired. Its the ideal solution for presenting sources across custom video display arrangements often found in commercial retail displays, control rooms or classrooms. HDMI Input and output resolutions up to 1080p@60Hz with LPCM audio up to 7.1 channels at 192kHz are supported. In Rotation Mode the output is locked to 1080p, but video latency is only 1 to 2 frames and the unit is capable of scaling and rotating the source, with an accuracy of 1° as required. In Scaler Mode, the unit can scale to a selection of output resolutions, up to 1080p@60Hz as well as apply video mirror, flip and freeze effects to the output.


By combining multiple units with an HDMI distribution amplifier or matrix it is possible to create varied installation of rotated displays for large video wall applications. This is perfect for creating distinct and eye-catching advertising or promotional displays limited only by your imagination. Configuring these large video walls is made simple by use of our Video Wall PC application, allowing the user to visually lay out and configure the entire video wall at one time in a graphical user interface. A number of common video wall arrangement presets are included with the software by default to make it possible to get started quickly. Basic control of the unit is provided by front panel controls with an OSD. The unit can also be controlled by Telnet, RS-232 or the Video Wall PC software.

Features:

  • HDMI 1.3 & HDCP 1.4 compliant
  • 1 x HDMI input and 1 x HDMI output
  • Input and output supports HD resolutions up to 1080p@60Hz
  • Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream
  • Only 1 to 2 frames of video latency
  • Supports horizontal/vertical video warping with zooming in/out and 360 degree display rotation in 1° increments (Rotation Mode)
  • Video mirror, flip, and freeze (Scaler Mode)
  • Wide variety of video adjustments, including: contrast, brightness, hue, sharpness, aspect ratio
  • Custom EDID management

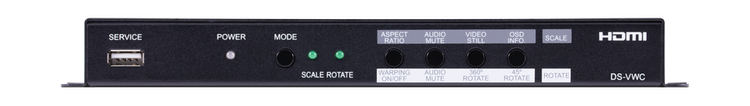

  • Front panel controls with OSD, Telnet, RS-232 and Video Wall PC Software control

Specifications:

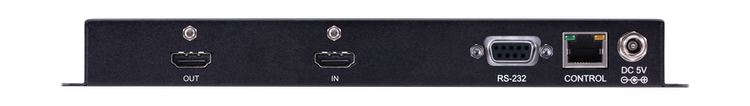

Inputs
1x HDMI [1x HDMI Uncompressed AV and Data]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]

Outputs
1x HDMI [1x HDMI Uncompressed AV and Data]


PSU:
5V/2.6A
Dimensions
231mm [W] x 117mm [D] x 25mm [H]
Net Weight
631g
Gross Weight
1070g

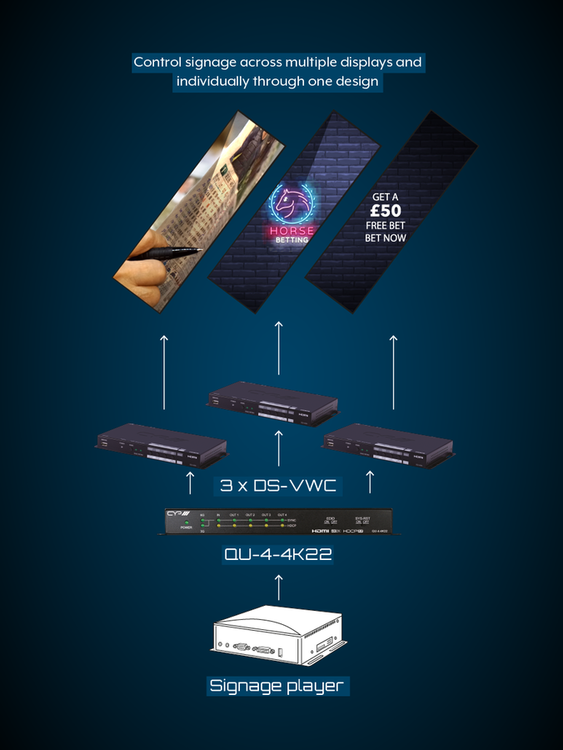

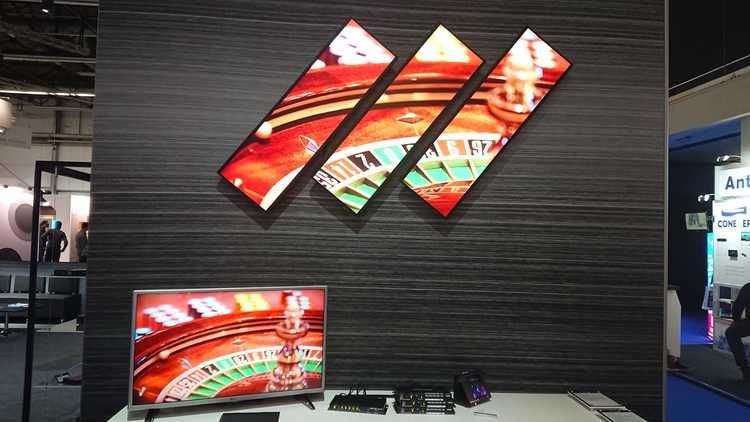

För att göra den setup som visas i filmklippet nedan behöver man följande:

1 st Digital Signage Player av valfri sort, en dator går bra med.

3 st CYP/// DS-VWC

1 st CYP/// QU-4-4K22


Manual
