CYP/// Presentations switch och scaler med HDMI, DP & VGA in

9 350 kr



Här är en kompakt och mångsidig presentations switch med ingångar för Display Port, HDMI och VGA.

Samtliga källor kan skalas och presenteras på dom båda speglade HDMI utgångarna.

Separat ljud kan skickas tillsammans med VGA signalen, man kan även plocka ut ljudet separat via den analoga eller digitala utgången.

Man kan kontrollera switchen med fjärrkontroll, RS-232, WebGui, Telnet eller frontpanelen.

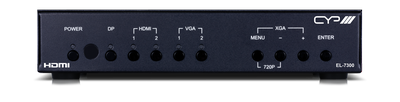

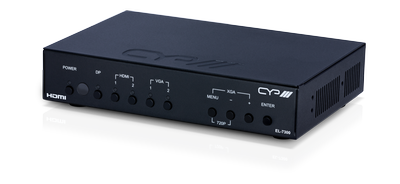

The EL-7300 is a compact and versatile presentation switch featuring Display Port, HDMI and VGA inputs. Any one of these inputs can be switched and scaled to your preference to the mirrored HDMI outputs. Independent audio signals can be routed with the VGA inputs of the switch. Audio can also be De-embedded at the output stage via the analogue or digital audio (ADC Conversion) outputs. The user can control the switch via IR remote, RS-232, WebGUI, Telnet or the front panel controls with OSD (On Screen Display). The EL-7300 is the perfect solution for any educational or corporate environment where AV system flexibility is essential.


v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
Integrate and switch HDMI, VGA, and Display Port sources to dual HDMI outputs
Audio de-embedding
Digital to Analogue & Analogue to Digital Audio conversion (DAC/ADC)
Detection of native screen resolution (EDID based)
Resolutions Supported : HDTV: 480i to 1080p plus 1080p 60fps PC: VGA to WUXGA
Audio Support : Dolby Digital, Dolby DTS, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, LPCM Multi-channel, LPCM Stereo, Analogue Stereo
Telnet, IR Remote, RS-232, Push Button Control
On Screen Display (OSD) and WebGUI
Hotkey output resolution support
Supports EDID and HDCP Management

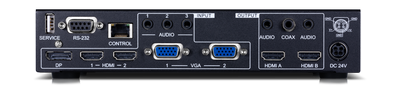

2x HDMI [2x HDMI Uncompressed AV and Data]
2x 15pin Dsub [2x VGA RGBHV]
3x 3.5mm Stereo mini-jack [3x Analogue inputs for HDMI Stereo(L/R)]
1x 9pin Dsub [1x RS-232 Data]
1x RJ45 [1x IP Control]
1x USB Type A [1x Service Update Propriety Data]
1x Display Port [1x Display Port Uncompressed Video]


2x HDMI [2x HDMI Uncompressed AV and Data]
2x 3.5mm Stereo mini-jack [2x Analogue Stereo(L/R)]
1x RCA [1x Coaxial 2 Channel LPCM]

PSU: 24V/2.7A

Dimensions: 215mm [W] x 153mm [D] x 42mm [H]

Net Weight: 1051g

Gross Weight: 1501g
