CYP/// Slimline Full HDBaseT mot., 4K, HDCP2.2, OAR

5 400 kr



PUV-1530RX

Med PUV-1530RX Slimline kan man ta emot video ( upp till och med 4K UHD), tillsammans med HD-ljud, LAN, IR båda hållen, RS-232 och Power over HDBaseT upp till 100 meter.

??????????????????The PU-1530RX Receiver will accept transmitted video resolutions up to 4K UHD, along with HD audio, 2-Way IR, RS-232, PoH (Power over HDBaseT), OAR (Optical Audio Return), and LAN signals up to 100m. This solution provides advanced signal management ensuring reliable results in the most demanding installation environments. All audio, video, control, and power are received simultaneously over a single CAT6a/7 cable up to 100m.

Features:


HDCP2.2 Compliant
HDBaseT 5-Play™ convergence: High-Definition video and audio, 100BaseT Ethernet, PoH (Power over HDBaseT) and control (Bi-Directional IR & RS-232 pass through)
Supported resolutions VGA~WUXGA, 480i~1080p, 4K [email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2), 4K [email protected] 60Hz (YUV 4:2:0), 4K/[email protected]/25/30Hz (RGB 4:4:4 & YUV 4:2:2) and 4K/[email protected] 60Hz (YUV 4:2:0) dependent upon the output display’s EDID settings
4K/2K & 4K UHD signals can be transmitted up to 70m via CAT5e/6 and 100m via CAT6a/7
Supports pass-through of HD audio formats: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio
Optical Audio Return (OAR)
Supports optical sampling rate up to 48kHz
Supports HDCP repeating and CEC functions
Supports 3D signals

Specifications:

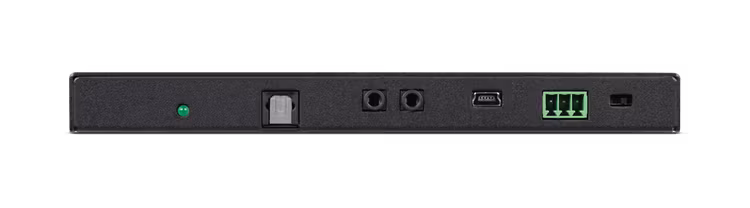

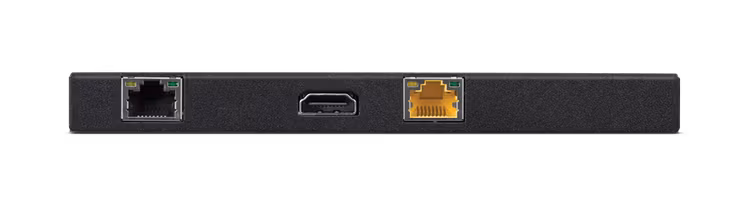

Input:1x RJ45 [1x HDBaseT - HDMI & Propriety Data]
1x Toslink [1x OAR digital pathway - 2 Channel LPCM / DTS / Dolby Digital]
1x 3.5mm Stereo mini-jack [1x Infra Red Receiver]
1x USB Type A [1x Service Port Propriety Data]
Output:1x HDMI [1x HDMI - Uncompressed AV and Data]
1x 3.5mm Stereo mini-jack [1x Infra Red Emitter]
1x RJ45 [1x LAN Serving]
1x Phoenix (3 pin) [1x RS-232]
POE PSUPoH
PSU:48V/0.83A
Dimensions:80mm [W] x 165mm [D] x 20mm [H]
Net. Weight:335g
Gross Weight:950g
