CYP/// HDBaseT™ Repeater 60m

Produkten är tyvärr slut i lager. :(


Detta är Lite versionen av PU-HBT-EX.

Denna har en begränsad överföringslängd på 60m, ingen PoE och inte heller någon möjlighet att skicka med Ethernet trafik.

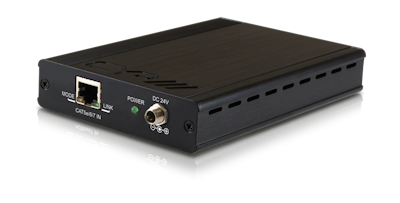

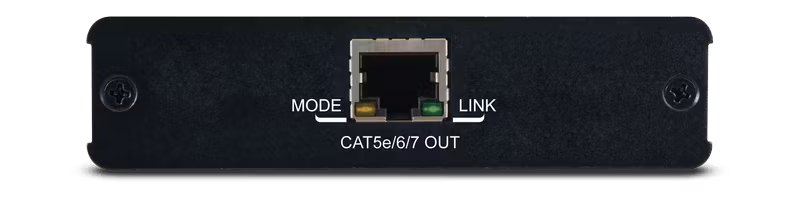

The PU-HBTL-EX repeater is designed to extend the signal transmission distances of CYP HDBaseT™ LITE Extender sets and Matrix systems by allowing the user to repeat HDBaseT™ LITE signals a further 60m over CAT5e/6/7 cable. This device features 3-Play™ functionality, including the highest quality 4K2K uncompressed HD video, uncompressed multi-channel audio, bi-directional IR control and RS-232 signals. This Repeater is designed to be used with the PU-513L-KIT and the PU-514L-KIT point-to-point Extender Kits, and with any CYP HDBaseT™ LITE Matrix system (PU-8H8HBTL / PU-424HBTL-KIT / PU-44XL-KIT).

The PU-HBTL-EX can also be cascaded twice to achieve a maximum of 180m transmission distance.


Uncompressed video support up to [email protected]/36-bit and 4k×2K (Ultra HD)

HDMI, DVI and HDCP compliant

Common supported resolutions : HDTV: 480p, 576p, 720p, 1080i, 1080p, 1080p24, 4Kx2K: PC: VGA, SVGA, XGA, WXGA, SXGA, UXGA, WUXGA

Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio

Supports 3D over HDMI and 4k×2k (Ultra HD) resolution

Supports CEC bypass

Supports 3-Play Convergence : Full uncompressed HD Video, Audio and Controls (IR and RS-232) over a single CAT5e/6/7 cable

Supports 2.25Gbps Frequency Clock per channel (225MHz Clock Rate)


Inputs:1x RJ45 [1x HDMI & Propriety Data]

Outputs:1x RJ45 [1x HDMI & Propriety Data]


Dimensions:100mm [W] x 155mm [D] x 30mm [H]

Net Weight:340g

Gross Weight:740g
