CYP/// PU-103 HDMI 1.3 över CAT5 & 6

Produkten är tyvärr slut i lager. :(

V1.3 HDMI over CAT5/6. The new compact HDMI over CAT-6 transmitters and receivers are the perfect solution to extend HDMI signals via CAT-6 cabling up to 25 metres at 1080P.


Compliant with HDMI 1.3, HDCP 1.1 and DVII.1 standards.
Compatible with Cat-5, CAT-5E and CAT-6 cables. CAT-6 is recommended for better performance.
Equalises and recovers incoming TMDS data before re-transmitting to ensure optimum signal quality.
Supports high definition up to 1080p @ 50/60Hz, output resolution follows input.
Source to the HDMI receiver input can be 30 metres using quality cables. Distance of the CAT-6 cable from transmitter to receiver is up to 25 metres.
Supports CEC functions

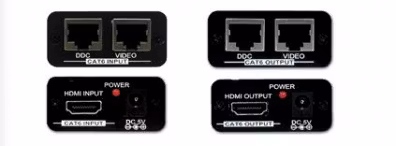

Input Ports: (Receiver) 1 x CAT-6 for Video, 1 x CAT-6 for DDC. (Transmitter) 1 x HDMI
Output Ports: (Receiver) 1 x HDMI. (Transmitter) 1 x CAT-6 for Video, 1 x CAT-6 for DDC
Power Supply: 2 x 5V/2.6A DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 50(W), x 62(D), x 23(H)mm (each)
Weight: 78g (each)
Packaged: Plain white boxed
