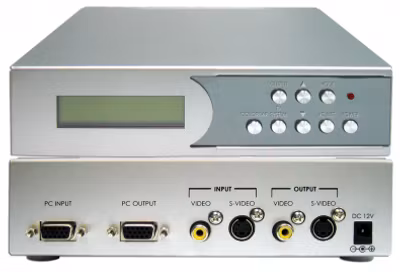

CPT-1370 är byggd för att kunna "blanda" PC grafik/text med videosignal. Den kan dessutom omvandla ett antal olika VGA signaler till video.
Superimpose PC text and graphics onto another video signal.
Supports VGA to Video conversion. VGA: 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1600 x 1200, Video: NTSC, NTSC4.43, PAL, PAL-M, PAL-N or SECAM
Zoom and Pan functions plus remote control.
Support vertical and horizontal overscan/underscan control.
Auto frame rate conversion from 56Hz up to 85Hz.
Cross-platform compatibility for PC, Macintosh and Note book.
No software driver required.
Simultaneous display on both the PC and TV monitor.
Specification
Inputs 1 x PC, 1 x Video, 1 x S-Video
Outputs 1 x PC Pass through, 1 x Video, 1 x S-Video
Power 9V/2A DC (US/EU standards, CE/FCC/UL certified)
Dimensions 191(w) x 140(d) x 48(h)mm
Weight 954g
