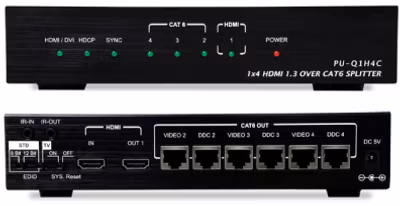

PU-Q1H4C
För att skicka HDMI signaler med Cat 5e/6 upp till 30m.Produkten har en HDMI ingång och en utgång.
Dessutom har den 4st Cat 5e/6 utgångar som kan användas för att skicka vidare signalen i långa längder till exempelvis en PU-O4H4C.
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant.
1 to 4 HDMI to CAT6 splitter.
Resolutions supported: PC - VGA to UXGA: HDTV - 480i to 1080p plus 1080p24fps.
High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LPCM.
CAT I/O can run up to 30m @ 1080p. HDMI Output can run up to 10m.
Selectable EDID settings - TV (downstream) and STD (fixed).
Supports ‘Deep Colour’ (10, & 12).
IR extender I/O.
System reset function switch generate a command every 10 minutes to the connected display which resets them to the correct HDMI input.
CAT output is ideal for cascading to other HDMI products within the PUMA range.
Specifikation:
Inputs: 1 x HDMI female, 1 x IR Jack
Outputs: 1 x HDMI female, 1 x IR Jack, 6 x CAT5e/6
Power: 5V/2.6A, DC (US/EU standards, CE/FCC/UL certified)
Dimensions: 215mm (W) x 134mm (D) x 48mm (H)
Weight: 900g
Weight: 700g
