HDMI över IP, H.264/H.265, PoE

7 400 kr



Här har vi mottagaren av serien 500762 från Muxlab. Med hjälp av denna och en eller flera sändare kan man skapa ett nätverk av en-till-en, en-till-flera eller flera-till-flera sändare och mottagare för att bygga ett distributions nätverk av ljud och bild genom vanliga Cat5e/Cat6 kablar.

Ytterligare funktioner som bland annat "Videovägg" funktionalitet och stöd för [email protected] finns också att hitta i 762 serien.

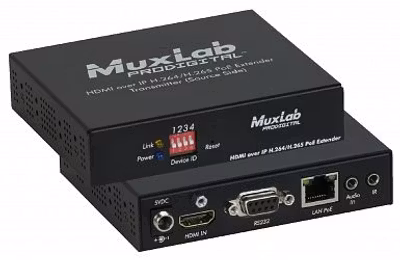

The HDMI over IP H.264/H.265 PoE Extender Transmitter and Receiver combination allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, and supports Video Wall and Multiview capabilities in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems. The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.


  • Audio/Video Streaming over the Internet
  • Commercial and residential AV systems
  • Classroom projector systems
  • Digital signage
  • Boardroom systems
  • Collaborative PC systems
  • Medical information systems


  • Receiver supports up to 4K @ 60Hz (4:4:4) video streams
  • Receiver up-scales 1080p @ 60Hz video streams from Transmitter and other devices up to 4K @ 60Hz
  • Transmitter supports up to 1080p @ 60Hz video
  • Supports Video Wall and Multiview capabilities
  • Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
  • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
  • High image quality and <200ms latency in low latency mode with H.265
  • Supports 100’s of TX & RX devices depending on network bandwidth
  • Supports Multicast, RTSP, RTMP, HLS, FLV and TS
  • Supports SPDIF (TosLink) Audio Out (RX)
  • 2CH audio insert (TX), and 2CH audio extract (RX)
  • RS232 and Directional IR for remote control of end-devices
  • PoE powered, via PoE (PSE) Ethernet Switch
  • Managed via Pro Digital Network Controller (500811), and MuxLab Control Smartphone & Tablet App
  • NEW: Video Wall Support
  • NEW: Multi-view Support
  • NEW: New 200ms low latency mode (reduces latency from 300ms to 200ms)
